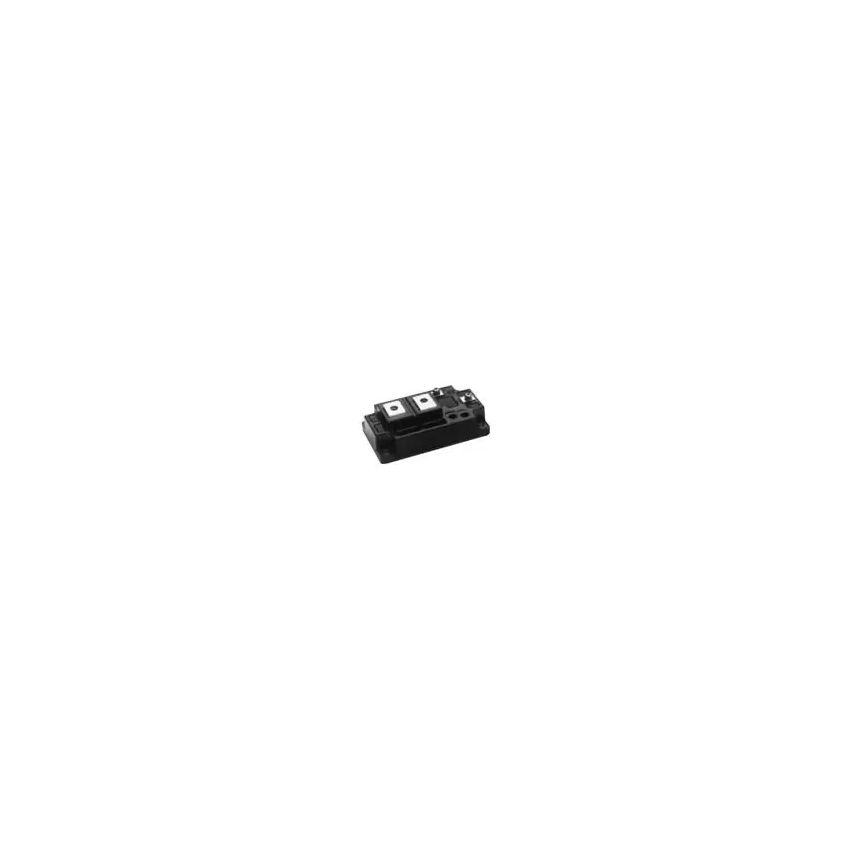

CM600HA-5F, 600A 250V Single IGBT Module, Chassis Mount

The CM600HA-5F is a high-performance single IGBT module from Mitsubishi Electric, designed for high-power switching applications. Its configuration with an integrated super-fast recovery free-wheel diode makes it ideal for use in UPS systems, forklifts, and other demanding applications. The module's robust design ensures reliable operation in challenging environments.​

Key Features:

• High Current Capability: Handles up to 600A continuous collector current, suitable for high-power applications.​
• Moderate Voltage Rating: Supports collector-emitter voltages up to 250V, ideal for medium-voltage systems.​
• Low Saturation Voltage: Typical V_CE(sat) of 1.2V at 25°C, ensuring efficient operation.​
• Fast Switching Performance: Rise time of 4000ns and fall time of 500ns, facilitating rapid switching operations.​
• Integrated Protection Features: Includes built-in super-fast recovery free-wheel diode for efficient operation.​
• Isolated Baseplate: All components and interconnects are isolated from the heat sinking baseplate, simplifying system assembly and thermal management.​

Additional Specifications:

• Mounting Style: Chassis Mount​
• Collector-Emitter Voltage (VCEO) : 250V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 600A
• Power Dissipation: 960W
• Operating Temperature Range: -40+150°C
