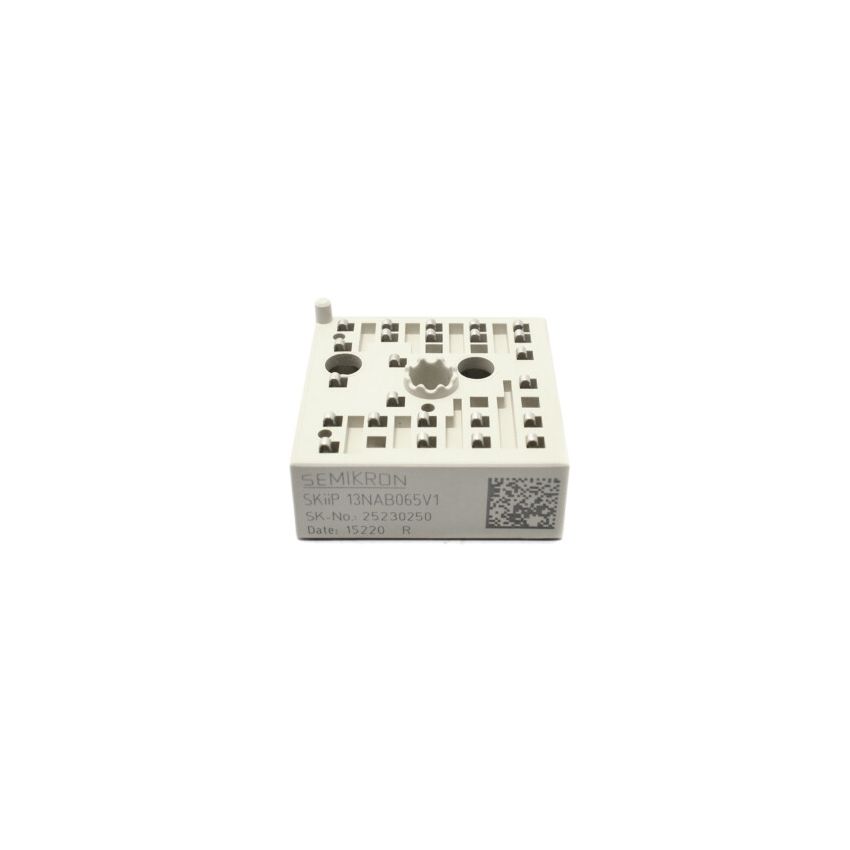

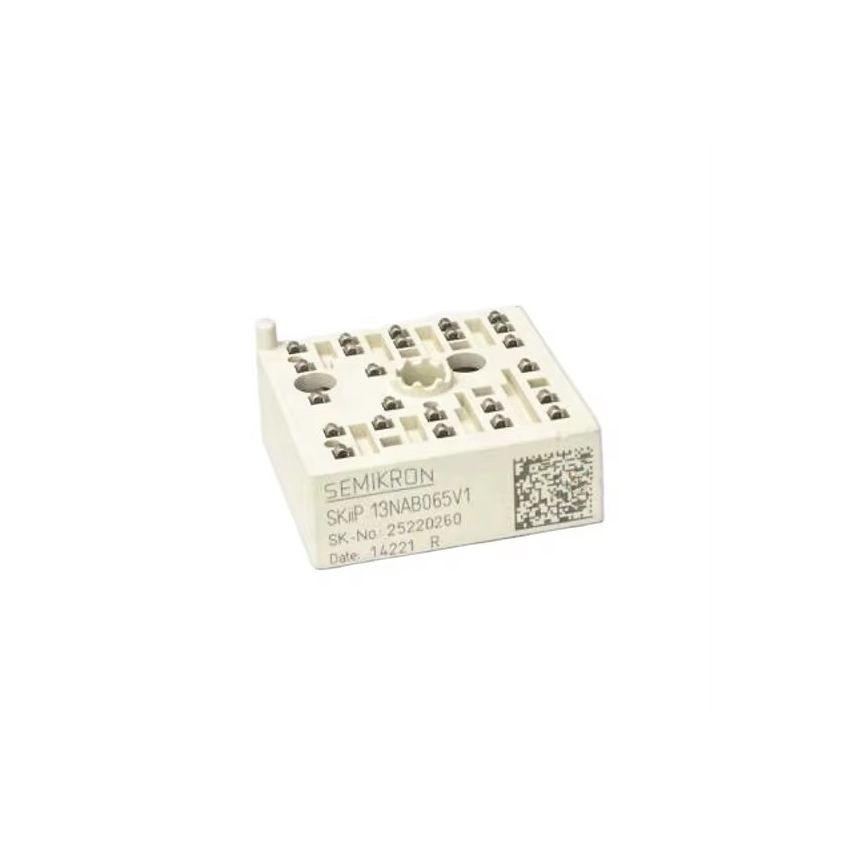

13NAB065V1, 24A 600V 3-Phase IGBT Power Module, MiniSKiiP® 1

The SKiiP 13NAB065V1 is a versatile IGBT power module from Semikron, integrating key power conversion components into a single MiniSKiiP® 1 package. Its compact design and integrated functionality make it an excellent choice for applications requiring efficient and reliable power conversion, such as UPS systems, inverters, and photovoltaic installations.​

Key Features:

• Integrated Functionality: Combines a 3-phase bridge rectifier, brake chopper, and 3-phase inverter in a single compact module.​
• Moderate Voltage Rating: Supports collector-emitter voltages up to 600V, suitable for medium-voltage systems.​
• Compact Design: MiniSKiiP® 1 housing facilitates easy integration into space-constrained applications.​
• Optimized for Efficiency: Designed for efficient power conversion in applications like UPS systems, inverters, and photovoltaic systems.​
• Robust Thermal Management: Efficient heat dissipation ensures reliable operation under varying load conditions.​
• Versatile Applications: Ideal for use in uninterruptible power supplies (UPS), inverters, and photovoltaic systems.​

Additional Specifications:

• Mounting Style: Chassis Mount
• Collector-Emitter Voltage (VCEO) : 600V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 24A
• Power Dissipation: 3Kw
• Operating Temperature Range: -40+125°C
