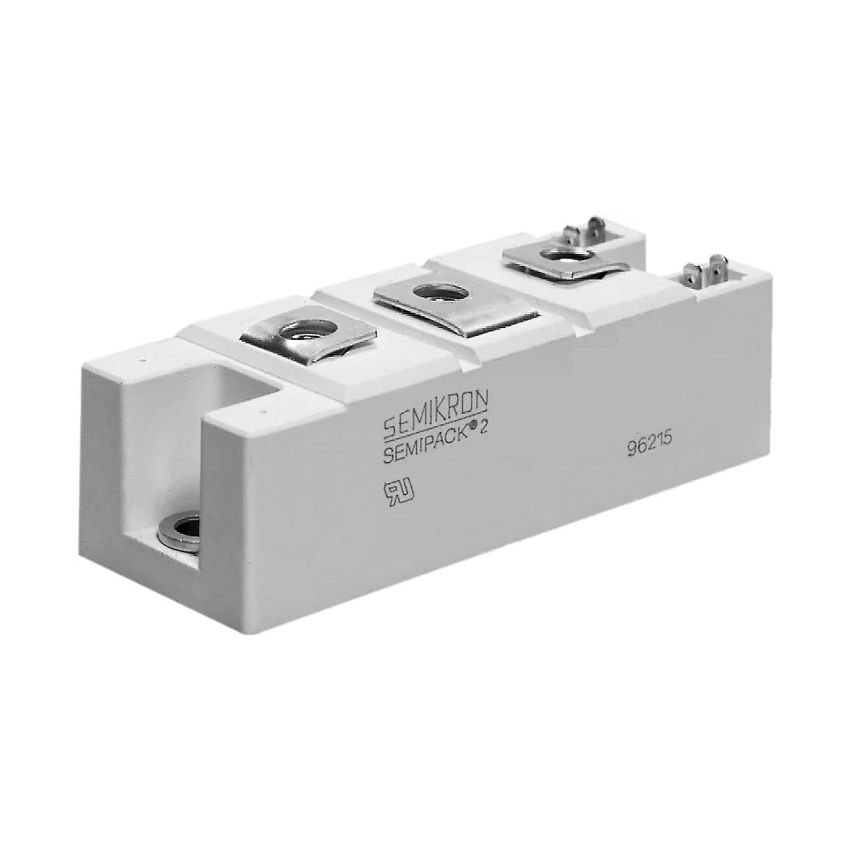

SKKT 132/16E, 137A 1600V Thyristor Module, SEMIPACK 2

The SKKT 132/16E is a dual thyristor module designed for high-power applications such as DC motor control, AC motor soft starters, temperature control systems, and professional light dimming. Its robust construction and high surge current capability make it ideal for demanding industrial environments. The module's design ensures efficient thermal management and reliable performance over a wide temperature range.​

Key Features:

• High Voltage Rating: Capable of withstanding up to 1600V peak reverse voltage, suitable for high-voltage applications.​
• High Current Handling: Supports an average forward current of 137A at 85°C, ideal for power rectification.​
• High Surge Capability: Can handle surge currents up to 4000A, enhancing durability under transient conditions.​
• Low On-State Voltage Drop: Typical on-state voltage drop of 1.0V, minimizing power loss.​
• Reliable Construction: Features hard soldered joints for high reliability and a ceramic insulated metal baseplate for efficient heat transfer.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -40°C to +125°C.​

Additional Specifications:

• Mounting Style: Panel Mount
• Gate Trigger Voltage (Vgt): 3V
• Gate Trigger Current (Igt): 150Ma
• Non repetitive surge peak on-state current (ITSM): 4000A
• Operating temprature Range: -40+125°C
• Rated Repetitive Off-State Voltage (VDRM): 1600V
