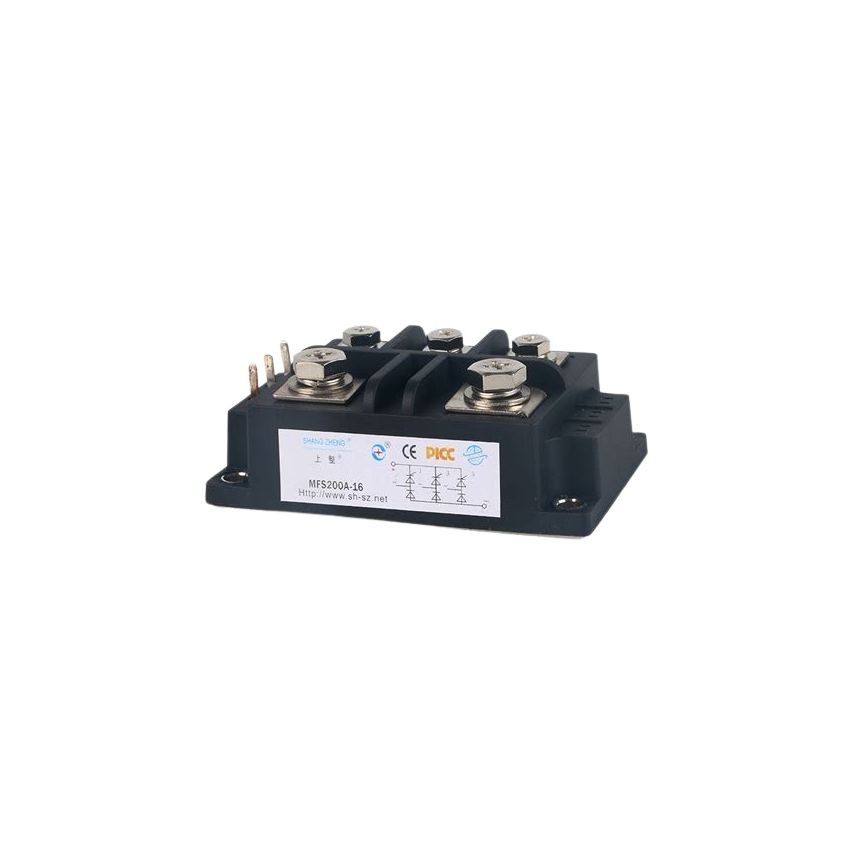

MFS200A-16, 200A 1600V Dual IGBT Module, Chassis Mount

The MFS200A-16 is a high-performance dual IGBT module designed for high-power switching applications. Its half-bridge configuration with integrated super-fast recovery diodes makes it ideal for use in AC motor control, motion/servo control, UPS systems, and welding power supplies. The module's isolated baseplate facilitates easy heat sinking, and its robust design ensures reliable operation in demanding environments.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1600V collector-emitter voltage and 200A continuous collector current, suitable for high-power applications.​
• Half-Bridge Configuration: Contains two IGBTs in a half-bridge setup, each with a reverse-connected super-fast recovery free-wheel diode.​
• Low Saturation Voltage: Typical V_CE(sat) of 3.4V at 15V gate-emitter voltage and 200A collector current, ensuring efficient operation.​
• Isolated Baseplate: All components and interconnects are isolated from the heat sinking baseplate, simplifying system assembly and thermal management.​
• High Power Dissipation: Capable of dissipating up to 1100W, accommodating demanding thermal conditions.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -40°C to +150°C.​

Additional Specifications:

• Mounting Style: Chassis Mount​
• Collector-Emitter Voltage (VCEO) : 1600V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 200A
• Power Dissipation: 1100W
• Operating Temperature Range: -40+150°C
