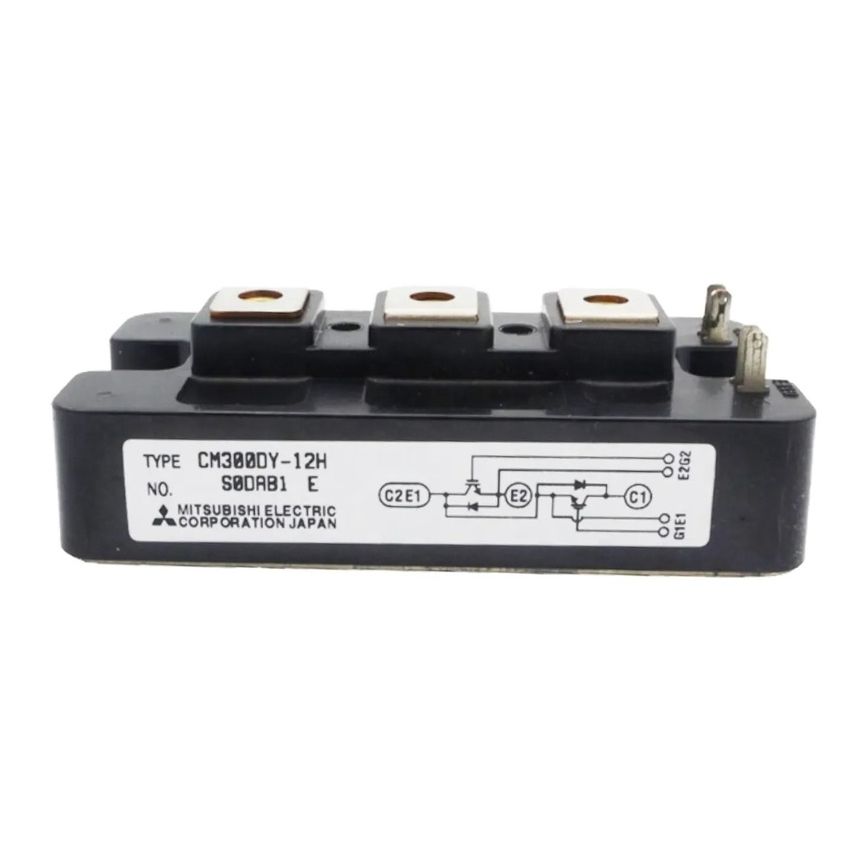

CM300DY-12H, 300A 600V Dual IGBT Module, Chassis Mount

The CM300DY-12H is a high-performance dual IGBT module designed for high-power switching applications. Its half-bridge configuration with integrated super-fast recovery diodes makes it ideal for use in AC motor control, motion/servo control, UPS systems, and welding power supplies. The module's isolated baseplate facilitates easy heat sinking, and its robust design ensures reliable operation in demanding environments.​

Key Features:

• High Current Capability: Handles up to 300A continuous collector current, suitable for high-power applications.​
• Moderate Voltage Rating: Supports collector-emitter voltages up to 600V, ideal for medium-voltage systems.​
• Half-Bridge Configuration: Contains two IGBTs in a half-bridge setup, each with a reverse-connected super-fast recovery free-wheel diode.​
• Low Saturation Voltage: Typical V_CE(sat) of 2.1V at 25°C, ensuring efficient operation.​
• Isolated Baseplate: All components and interconnects are isolated from the heat sinking baseplate, simplifying system assembly and thermal management.​
• High Power Dissipation: Capable of dissipating up to 1100W, accommodating demanding thermal conditions.​

Additional Specifications:

• Mounting Style: Chassis Mount
• Collector-Emitter Voltage (VCEO) : 600V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 300A
• Power Dissipation: 1100W
• Operating Temperature Range: -40+150°C
