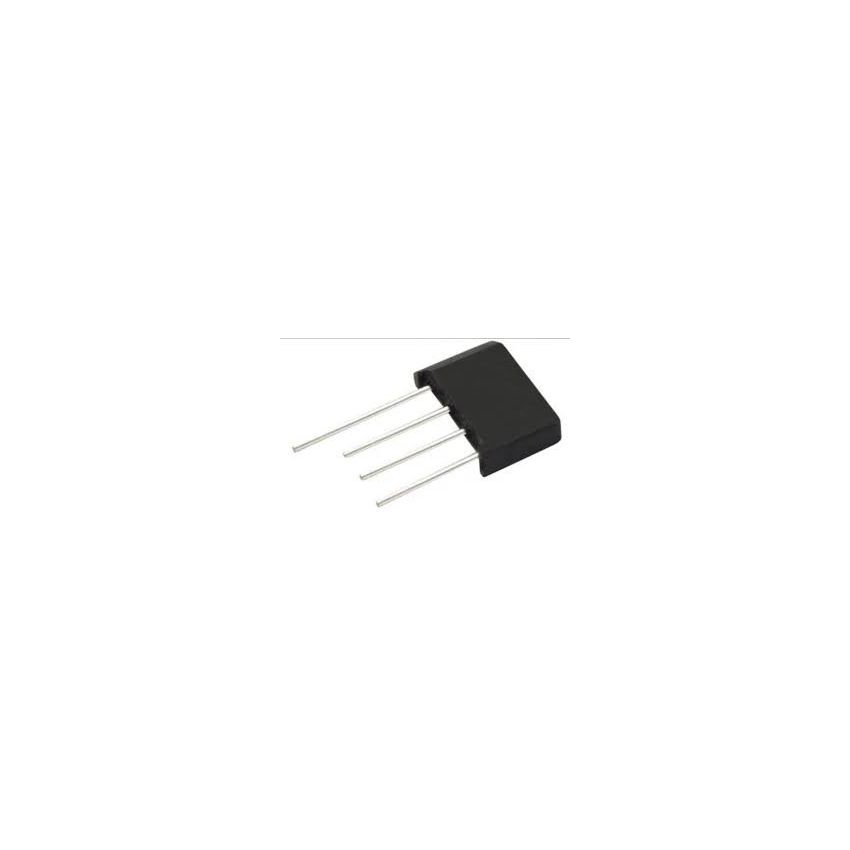

KBU806 (or Similar) 5A Bridge Rectifier

A 5A bridge rectifier is an integrated component consisting of four diodes connected in a bridge configuration within a single housing. This device is designed to convert alternating current into direct current by utilizing both half cycles of the AC input. For a 5 Ampere rating, these are commonly found in the KBU, GBU, or KBP package styles, which feature a flat plastic body with four inline or staggered pins. This component is essential for power supplies in consumer electronics, small battery chargers, and industrial control systems. The package usually includes a mounting hole or a flat surface to allow for a heat sink if the device is intended to run at its full 5 Ampere capacity for extended periods. The pins are clearly marked with plus and minus for the DC output, and two wavy lines or AC symbols for the alternating current input.

Key Features:

Peak reverse voltage ratings typically ranging from 50 to 1000 Volts.

Maximum forward voltage drop of 1.1 Volts per diode element.

High surge current capability of 200 Amperes.

Operating temperature range from minus 55 to plus 150 degrees Celsius.

Four pin configurations for standard printed circuit board mounting.
