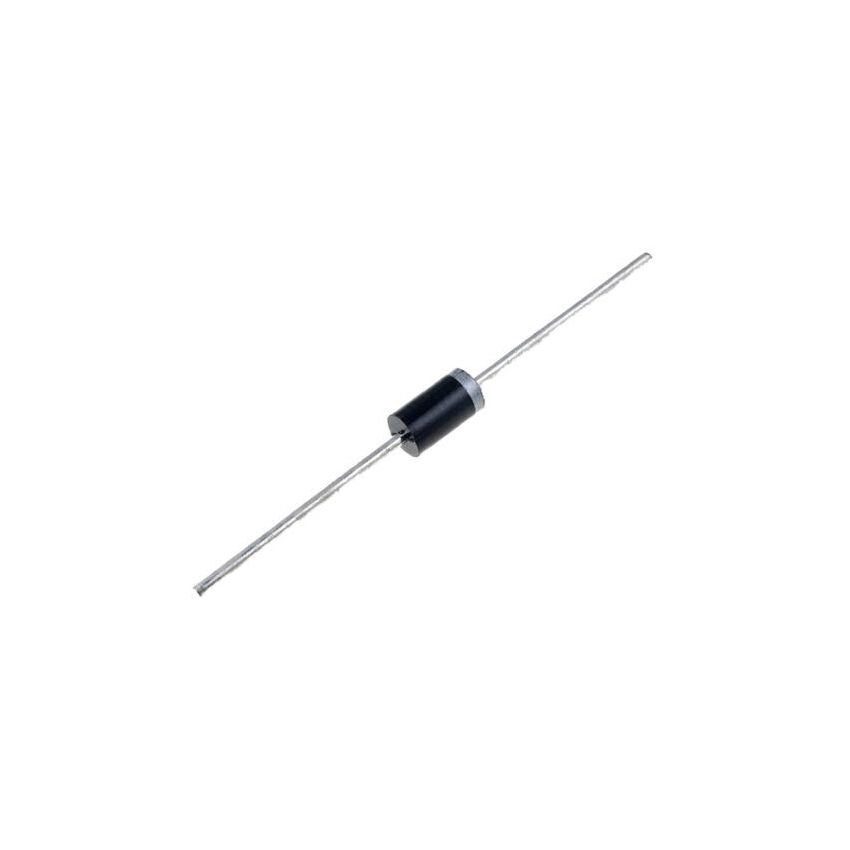

MUR1540 Ultrafast Switching Power Rectifier

The MUR1540 is a state of the art ultrafast power rectifier specifically designed for use in switching power supplies, inverters, and as freewheeling diodes. It features a planar silicon nitride passivated construction that ensures high reliability and low stored charge. Its primary advantage is its soft recovery characteristic which minimizes ringing and electrical noise in power switching circuits, thereby reducing power loss in the switching transistor. With a 15 Ampere current capacity and high voltage rating, it is a critical component for Switch Mode Power Supplies, uninterruptible power supplies, and motor controllers. The device has a low forward voltage drop that helps maintain high efficiency even under heavy loads. The standard TO 220AC package provides an easy mounting solution and a low thermal resistance path, allowing it to dissipate significant power when properly heat sinked.

Key Features:

Average Rectified Forward Current (IF(AV)): 15 Amperes.

Ultrafast Reverse Recovery Time (trr): 35 to 60 Nanoseconds (typically less than 55ns).

Maximum Forward Voltage Drop (VF): 1.20 to 1.25 Volts at 15 Amperes.

Operating Junction Temperature: -65 to +175 degrees Celsius.

Package Type: TO-220AC (2-lead) or TO-220-2 through-hole.
