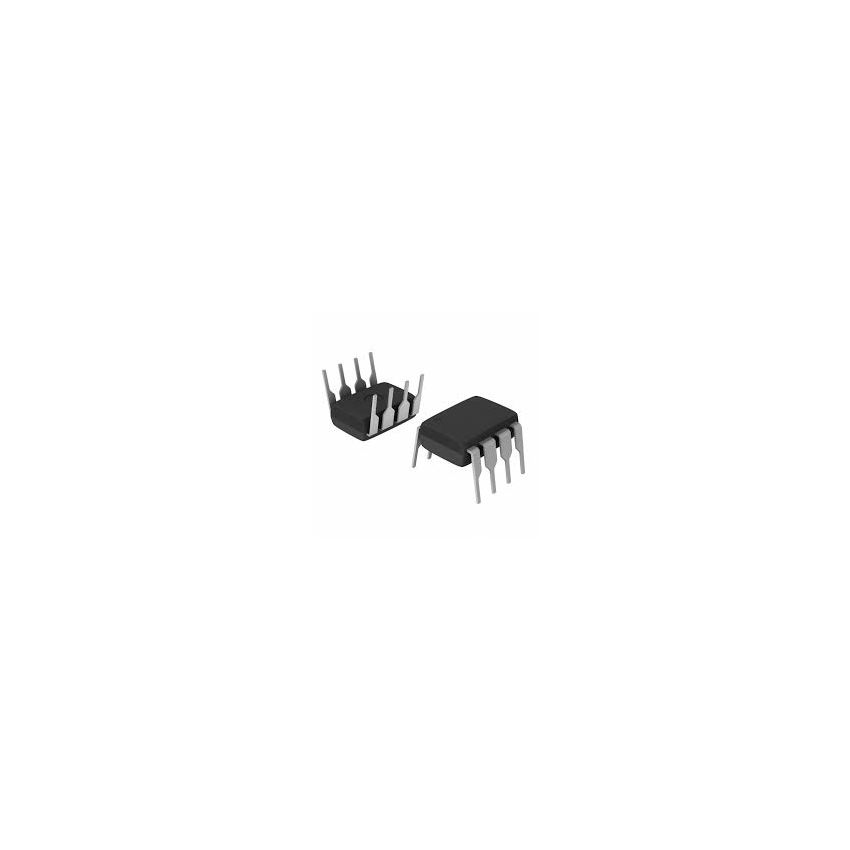

MAX517 2-Wire Serial 8-Bit Digital-to-Analog Converter (DAC)

The MAX517 is a single, 8-bit DAC designed for applications where space and ease of use are critical. It uses a 2-wire interface that allows multiple devices to communicate on the same bus, making it ideal for systems with minimal I/O lines. Unlike the MAX518 (which uses VDD as a reference) or the MAX519 (a dual DAC), the MAX517 features a dedicated external reference input that allows the output range to be customized. Its internal precision buffers allow the output to reach both supply rails, ensuring a full dynamic range for analog signals. Common applications include digital gain and offset control, industrial process control, automated test equipment (ATE), and programmable attenuators. Its tiny footprint and extremely low shutdown current (4 microamperes) make it highly suitable for battery-powered or space-constrained analog systems.

Key Features:

Interface: Simple 2-wire serial (I2C compatible) supporting data rates up to 400 kbps.

Supply Voltage: Single +5V operation (range typically 4.5V to 5.5V).

Output: Rail-to-rail output swing via internal precision buffer amplifiers.

Power Management: Includes a 4 microampere low-power shutdown mode.

Reset: Power-on reset feature clears all latches and sets output to 0V.
