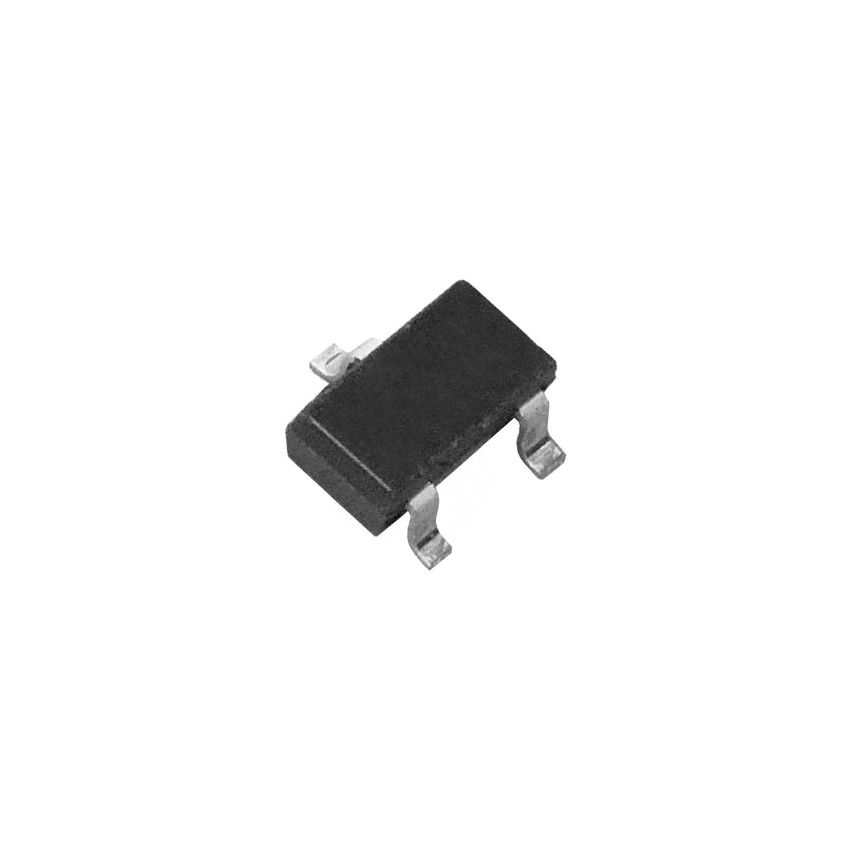

BAV70 Dual Switching Diode (Marking Code L44)

The device marked L44 in a SOT-23 package is the BAV70, a high-speed dual switching diode. It consists of two silicon epitaxial planar diodes connected in a common cathode configuration, meaning pins 1 and 2 are the individual anodes, while pin 3 is the shared cathode for both diodes. Because of its very fast switching speed (6ns), the BAV70 is primarily used for high-speed switching applications, signal processing, and protecting logic-level circuits from voltage transients. The compact SOT-23 package makes it ideal for high-density circuit boards in consumer electronics, automotive systems, and telecommunications. Its design allows it to replace two individual signal diodes like the 1N4148, saving significant board space while maintaining high performance.

Key Features:

Maximum Reverse Voltage (VR): 70 Volts.

Forward Continuous Current (IF): 215 Milliamperes.

Reverse Recovery Time (trr): 6.0 Nanoseconds maximum.

Forward Voltage Drop (VF): 1.25 Volts maximum at 150 mA.

Package Type: SOT-23 surface mount plastic package.
