LL4148 Small Signal Fast Switching Diode

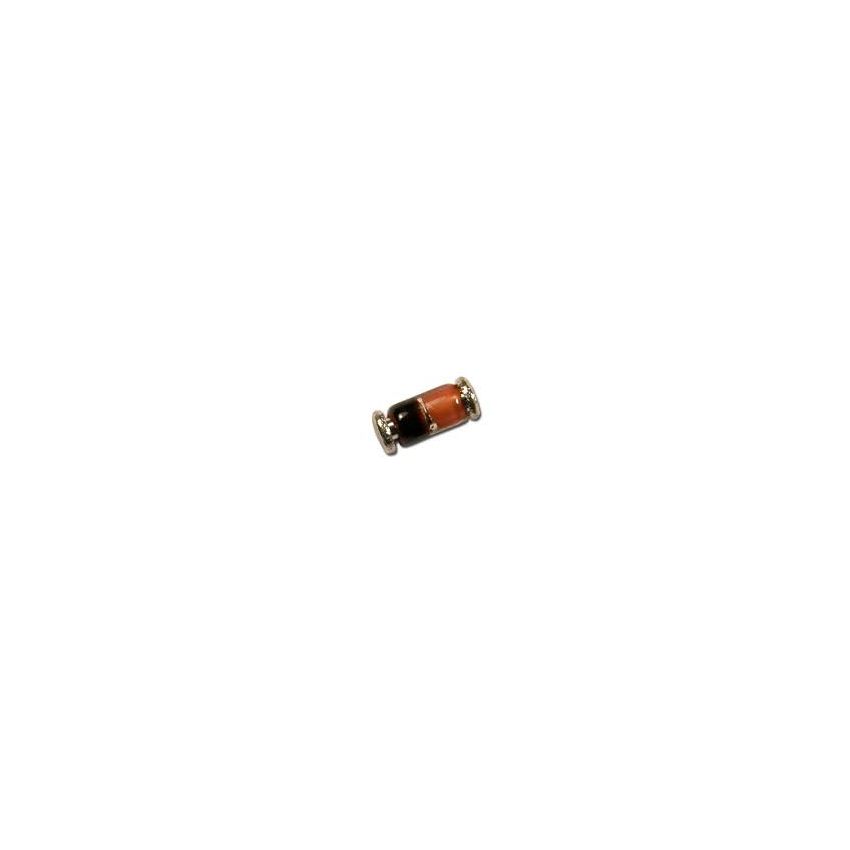

The LL4148 is the surface-mount (SMD) equivalent of the classic 1N4148 signal diode. It is housed in a MiniMELF (SOD-80) package, which is a cylindrical glass body designed for automated assembly. Unlike flat SMD packages, the MiniMELF package is known for its high reliability and thermal stability in demanding environments. The primary strength of the LL4148 is its ultrafast switching speed. With a recovery time of only 4 nanoseconds, it is perfectly suited for high-frequency signal processing, fast logic switching, and general-purpose rectification where timing is critical. It is commonly used in telecommunications, computers, and consumer electronics for wave clipping, clamping, and protection of sensitive logic circuits. Because it is a small-signal diode, it is not intended for high-power rectification but excels at handling low-current data and control signals.

Key Features:

Repetitive Peak Reverse Voltage (VRRM): 100 Volts maximum.

Forward Continuous Current (IF): 300 Milliamperes.

Reverse Recovery Time (trr): 4.0 Nanoseconds.

Forward Voltage Drop (VF): 1.0 Volt at 10 Milliamperes.

Package Type: SOD-80 (MiniMELF) surface mount glass package.
