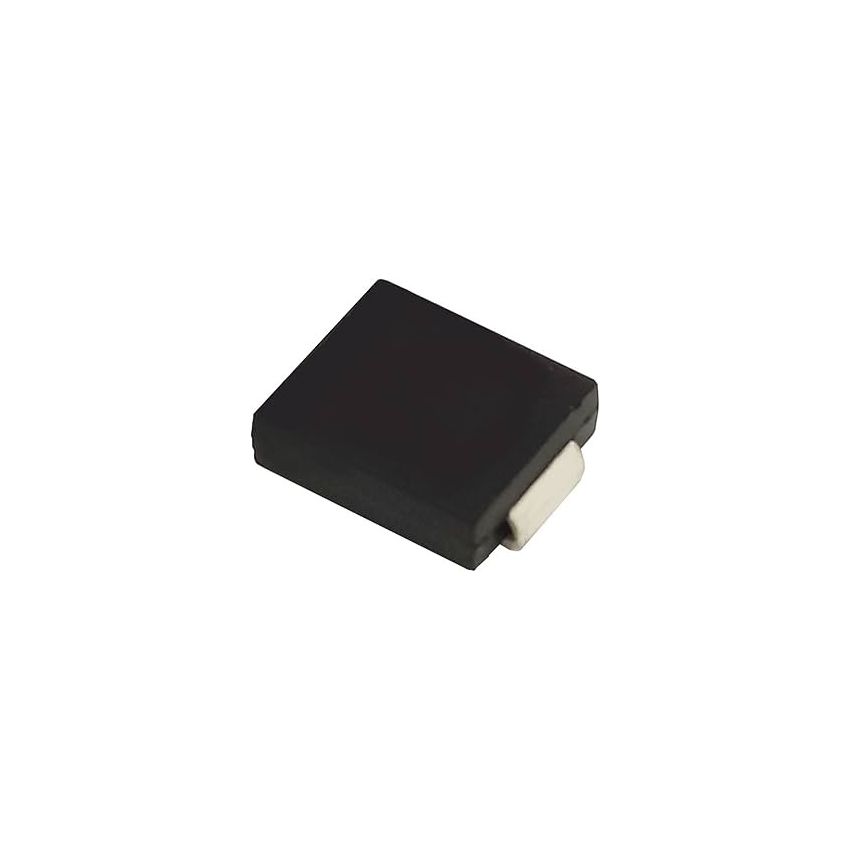

SMCJ440CA, 440V Bidirectional TVS Diode, 1.5kW, DO-214AB

The SMCJ440CA is a bidirectional TVS diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. With a standoff voltage of 440V and a peak pulse power dissipation of 1.5kW, it is ideal for use in industrial and telecommunication applications where high-voltage transients are a concern. Its fast response time and low clamping voltage make it effective in suppressing voltage spikes and protecting downstream components.

Key Features:

• High Power Dissipation: Capable of handling up to 1.5kW peak pulse power.
• Bidirectional Protection: Safeguards circuits against both positive and negative voltage transients.
• Fast Response Time: Typically less than 1 picosecond from 0V to breakdown voltage.
• Low Clamping Voltage: Limits voltage overshoots to protect sensitive components.
• Surface-Mount Package: Compact DO-214AB (SMC) package suitable for automated assembly.
• RoHS Compliant: Environmentally friendly and compliant with global standards.

Additional Specifications:

• Mounting Style: Surface Mount
• Maximum Peak Reverse Voltage (VRRM): 440V
• Forward Average Current (If): 492V
• Forward Voltage (Vf): 713V
• Maximum Surge Current: 2.1A
• Reverse Current (Ir): <=1µA
• Operating Temperature Range: -65+150°C
• Dimensions: 7.11x6.22x2.41Mm
