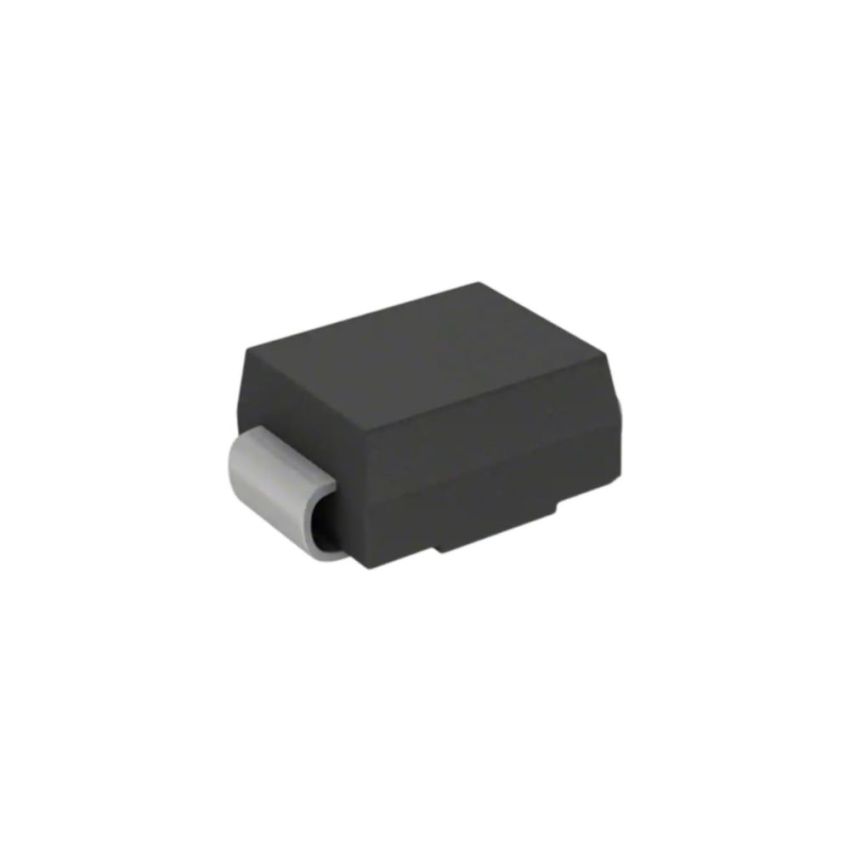

SS24,Schottky Barrier Rectifier Diode,2A,40V,

The SS24 Schottky Barrier Rectifier Diode is a high-performance component designed for surface mount applications. With its 2A forward average current capability and a peak reverse voltage of 40V, this diode is ideal for use in power supplies, polarity protection circuits, and other high-efficiency rectification applications.

The SS24 features a low forward voltage drop of 0.50V, which minimizes power loss and ensures energy efficiency. Its compact DO-214AC (SMA) package makes it suitable for space-constrained PCB layouts, while the ability to handle a peak surge current of 75A ensures robust performance during sudden load changes.

Engineered for reliability, the SS24 operates within a wide temperature range of -55°C to +150°C, making it suitable for various industrial and consumer applications. This environmentally friendly, RoHS-compliant diode is the perfect choice for modern electronic designs.

• High Current Capability: Supports up to 2A forward current for efficient rectification in power supply circuits.
• Low Forward Voltage Drop: Reduces power loss with a forward voltage of 0.50V, ensuring high efficiency.
• Compact Surface Mount Design: Packaged in a DO-214AC (SMA) format for compact PCB designs.
• High Surge Current Handling: Can handle up to 75A peak surge current, making it reliable under sudden load changes.
• Temperature Stability: Operates reliably within a wide temperature range of -55°C to +150°C.
• RoHS Compliant: Environmentally friendly design with lead-free construction.
