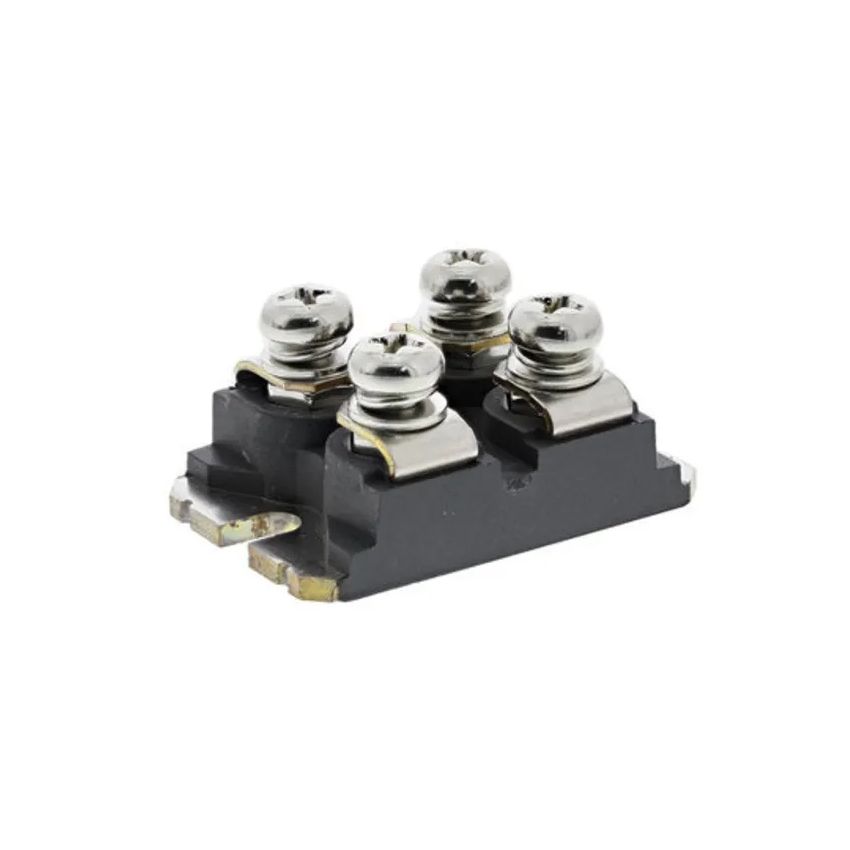

DSEI2X61-06C, Dual FRED Diode, miniBLOC

The DSEI2X61-06C is a fast recovery epitaxial diode (FRED) module from IXYS featuring two independent high-performance diodes in a miniBLOC package. It is designed for applications such as high-frequency inverters, motor drives, SMPS, and snubber or free-wheeling circuits. The device delivers superior performance in high-voltage, high-current environments with excellent thermal behavior and reduced EMI.

Key Features:

• Dual Independent FRED Diodes in a single ISOTOP-compatible package.
• High-speed switching with a typical recovery time of just 35 ns.
• High Current Handling – 60A average forward current, 100A RMS per diode.
• Low Switching Losses and Soft Recovery Behavior for high-efficiency applications.
• High Surge Capability up to 600A (8.3ms, 60Hz).
• High Isolation Voltage of 2500 V~.

Additional Specifications:

• Mounting Style: Chassis Mount
• Maximum Peak Reverse Voltage (VRRM): 600V
• Forward Average Current (If): 60A
• Forward Voltage (Vf): 1.8V
• Maximum Surge Current: 600A
• Reverse Current (Ir): 200µA At 25°C
• Operating Temperature Range: -40+150°C
• Dimensions: 38.2x30.3x12.85Mm
