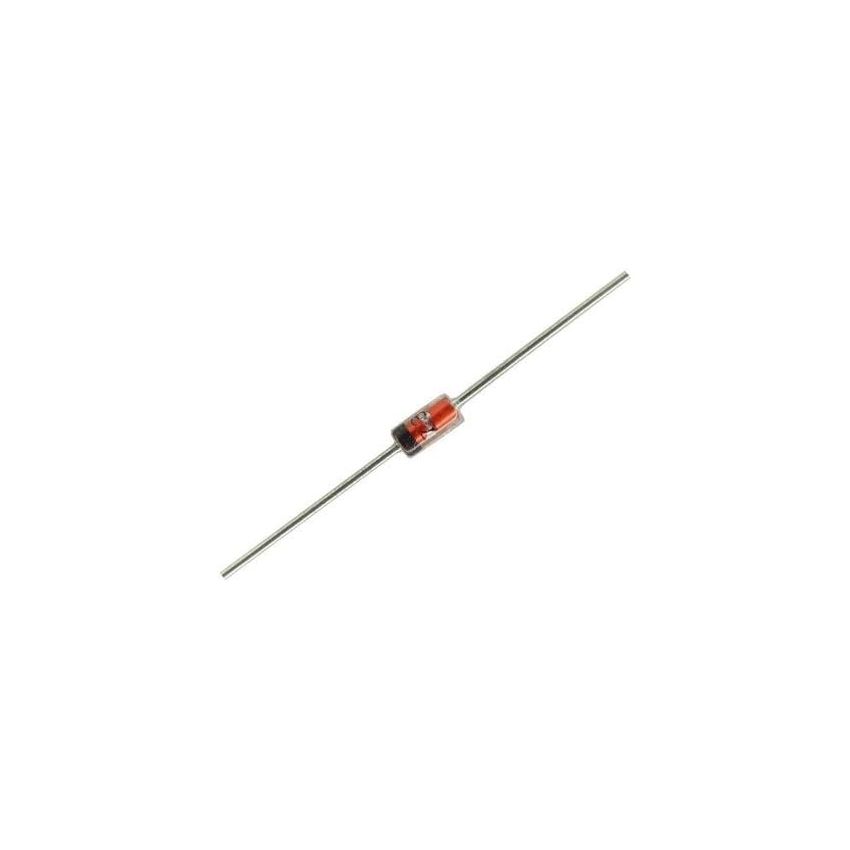

1N4733A, 5.1V Zener Diode, 1W, DO-41

The 1N4733A is a silicon planar Zener diode designed for voltage stabilization and protection in low- and medium-power applications. With a nominal Zener voltage of 5.1V and robust thermal performance, it is ideal for voltage reference and clamping circuits. Its axial DO-41 package supports efficient heat dissipation and simple PCB integration.

Key Features:

• 1 Watt Power Dissipation: Suitable for general-purpose regulation.
• Glass Passivated Junction: Ensures excellent stability and reliability.
• Low Leakage Current: Enhances efficiency in standby and protection circuits.
• Compact DO-41 Package: Easy through-hole mounting for universal applications.
• Wide Operating Temperature Range: Industrial-grade reliability.
• Stable 5.1V Regulation: ±5% voltage tolerance at 49 mA.

Additional Specifications:

• Mounting Style: Through Hole
• Zener Voltage (Vz): 5.1V At 49Ma
• Power Dissipation: 1W
• Reverse Current (Ir): <=1µA At 1V
• Zener Impedance (Zz): 7Ohm At 49Ma
• Operating Temperature Range: -65+200°C
• Dimensions: 5.2x2.7x25Mm
