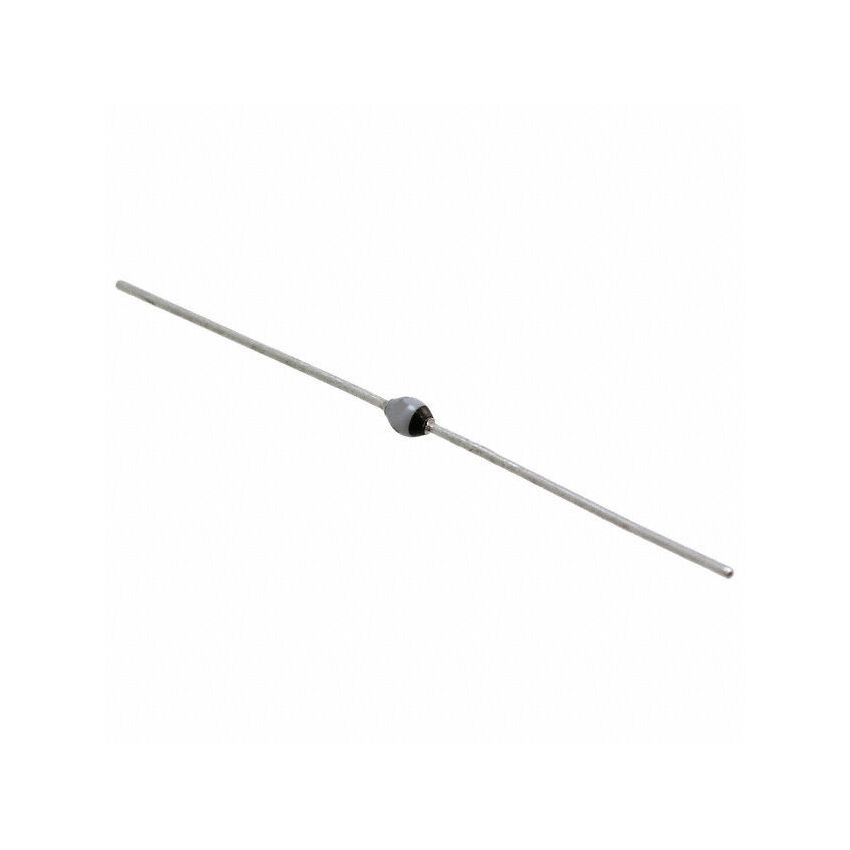

BYV26E, 1A 1000V Ultra-Fast Avalanche Rectifier Diode, SOD-57

The BYV26E is an ultra-fast avalanche rectifier diode designed for high-speed switching applications. Its fast recovery time and high surge current capability make it ideal for use in switched-mode power supplies, high-frequency inverter circuits, and other applications requiring efficient and reliable rectification. The diode's robust construction and wide operating temperature range ensure consistent performance in various environments.​

Key Features:

• Ultra-Fast Recovery Time: Reverse recovery time of 75 ns, making it suitable for high-speed switching applications.​
• High Voltage Rating: Capable of withstanding up to 1000V peak reverse voltage, suitable for high-voltage applications.​
• High Voltage Rating: Capable of withstanding up to 1000V peak reverse voltage, suitable for high-voltage applications.​
• High Surge Capability: Can handle surge currents up to 30A, enhancing durability under transient conditions.​
• Low Forward Voltage Drop: Typical forward voltage drop of 2.5V at 1A, minimizing power loss.​
• Reliable Construction: Glass passivated junction in a hermetically sealed SOD-57 package, ensuring safety and durability.​

Additional Specifications:

• Type: Ultra-Fast Avalanche Rectifier Diode​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 1A
• Forward Voltage (Vf): 2.5V At 1A
• Maximum Surge Current: 30A
• Reverse Current (Ir): 5μA at 25°C
• Dimensions: SOD-57 Package Dimensions
