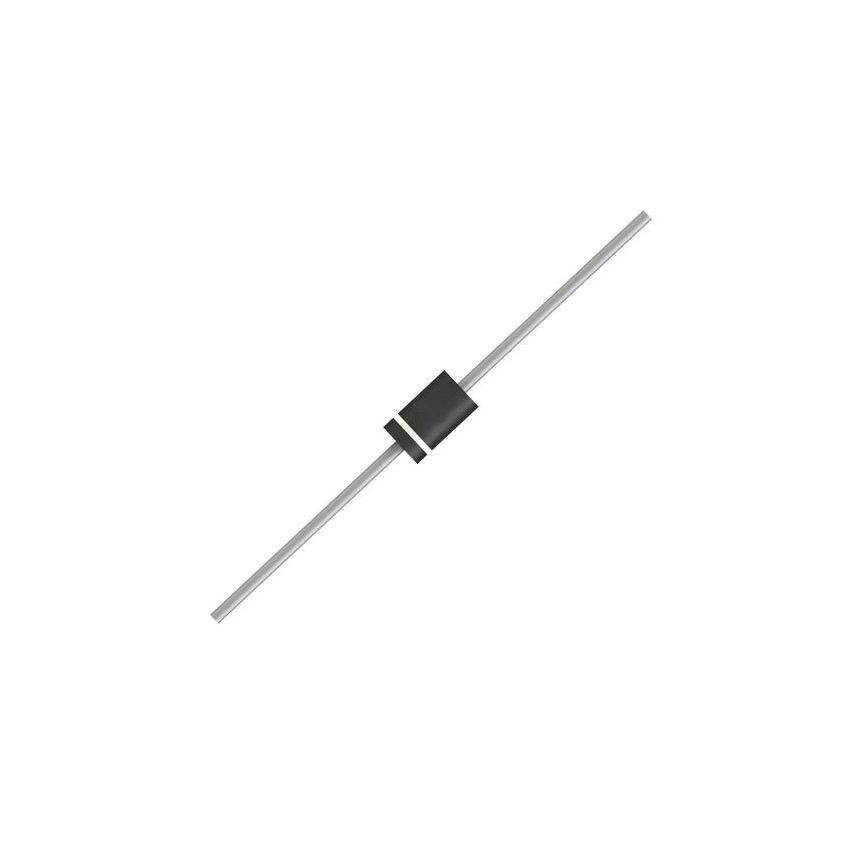

SR3200, 3A 200V Schottky Barrier Rectifier Diode, DO-201AD

The SR3200 is a Schottky Barrier Rectifier Diode designed for low voltage, high-frequency inverters, free-wheeling, and polarity protection applications. Its low forward voltage drop and high surge current capability make it ideal for efficient power conversion and protection circuits. The diode's robust construction and wide operating temperature range ensure consistent performance in various environments.​

Key Features:

• High Voltage Rating: Capable of withstanding up to 200V peak reverse voltage, suitable for high-voltage applications.​
• Standard Current Handling: Supports an average forward current of 3A, ideal for general-purpose rectification.​
• High Surge Capability: Can handle surge currents up to 100A, enhancing durability under transient conditions.​
• Low Forward Voltage Drop: Typical forward voltage drop of 0.9V at 3A, minimizing power loss.​
• Fast Switching Speed: Suitable for high-frequency applications due to rapid response time.​
• Reliable Construction: Molded plastic case with UL 94V-0 flammability rating, ensuring safety and durability.​

Additional Specifications:

• Type: Schottky Barrier Rectifier Diode
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 200V
• Forward Average Current (If): 3A
• Forward Voltage (Vf): 0.9V At 3A
• Maximum Surge Current: 100A
• Reverse Current (Ir): 0.2Ma At 25°C
• Dimensions: DO-201AD Package Dimensions​
