SS310,Schottky Barrier Rectifier,3A,100V

The SS310 Schottky Barrier Rectifier is a high-performance 3A, 100V diode designed for power conversion and rectification applications. Utilizing Schottky barrier technology, this diode delivers low forward voltage drop (0.85V max at 3A), reducing power losses and improving efficiency in switching power supplies, DC-DC converters, and battery protection circuits.

With a peak forward surge current capability of 100A, the SS310 effectively suppresses transient voltage spikes, ensuring stable circuit performance. Its SMC/DO-214AB surface-mount package enables easy PCB assembly while maintaining excellent thermal dissipation properties.

Built with high-reliability materials and compliant with UL94V-0 flammability standards, the SS310 is suitable for both industrial and consumer electronics applications, including power adapters, LED drivers, and automotive circuits.

• High Efficiency Performance: Schottky barrier technology ensures low forward voltage drop (0.85V max at 3A) for increased efficiency.
• High Current Handling: Supports 3A continuous forward current (If) for power management applications.
• Reliable Surge Protection: Handles 100A peak forward surge current (IFSM) for transient voltage suppression.

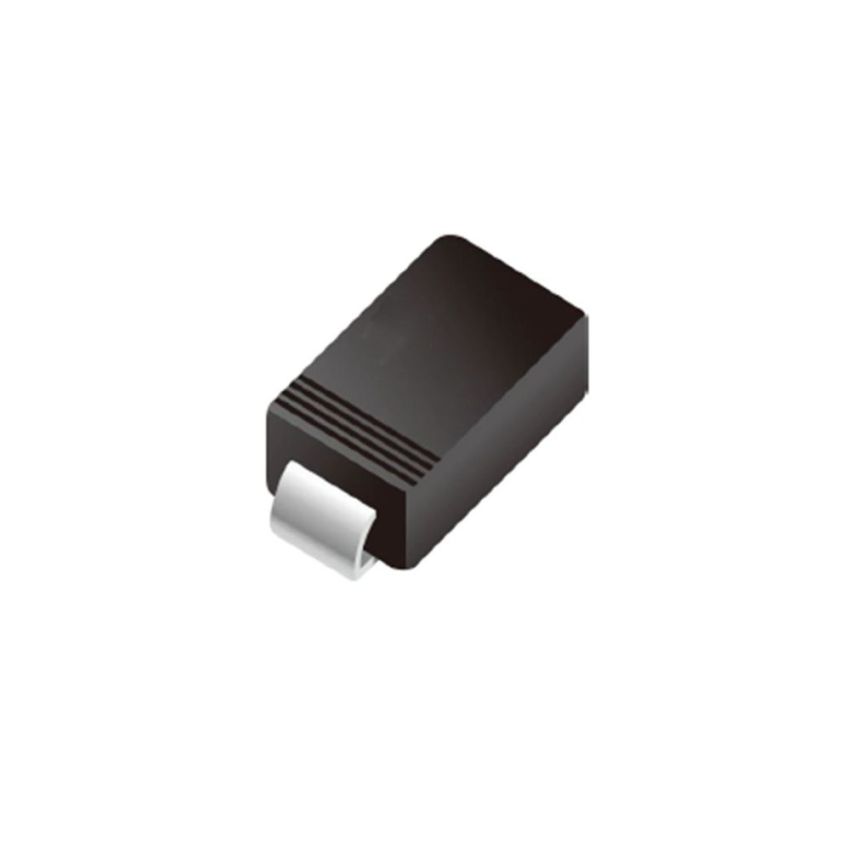

• Compact Surface Mount Package: SMC/DO-214AB package offers ease of placement and high thermal dissipation.
• Wide Operating Temperature Range: Works in extreme environments between -55°C to +150°C.
• UL94V-0 Rated Material: Encased in flame-resistant plastic for safe operation in high-power circuits.
