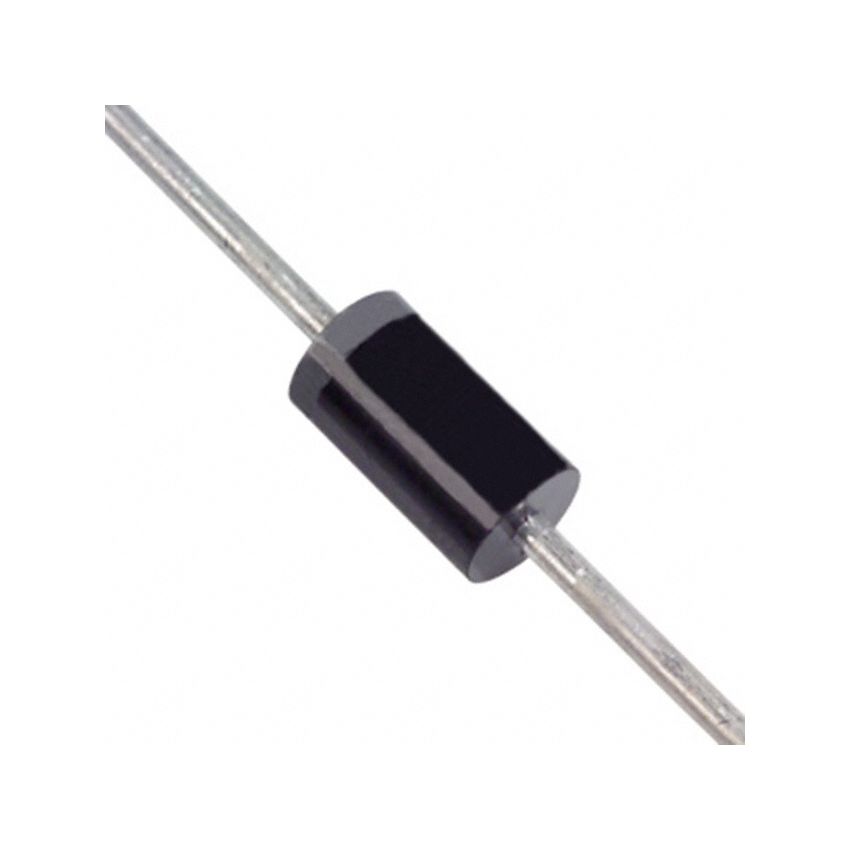

SR506, 5A 60V Schottky Barrier Rectifier Diode, DO-201AD

The SR506 is a Schottky Barrier Rectifier Diode designed for low voltage, high-frequency inverters, free-wheeling, and polarity protection applications. Its low forward voltage drop and high surge current capability make it ideal for efficient power conversion and protection circuits. The diode's robust construction and wide operating temperature range ensure consistent performance in various environments.​

Key Features:

• High Current Capability: Supports an average forward current of 5A, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 0.55V at 5A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 150A, enhancing durability under transient conditions.​
• Guard Ring for Transient Protection: Provides enhanced reliability and protection against voltage spikes.​
• Low Power Loss, High Efficiency: Ideal for applications requiring efficient power conversion.​
• Reliable Construction: Molded plastic case with UL 94V-0 flammability rating, ensuring safety and durability.​

Additional Specifications:

• Type: Schottky Barrier Rectifier Diode
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 60V
• Forward Average Current (If): 5A
• Forward Voltage (Vf): 0.55V At 5A
• Maximum Surge Current: 150A
• Reverse Current (Ir): 1Ma At 25°C
• Dimensions: DO-201AD Package Dimensions​
