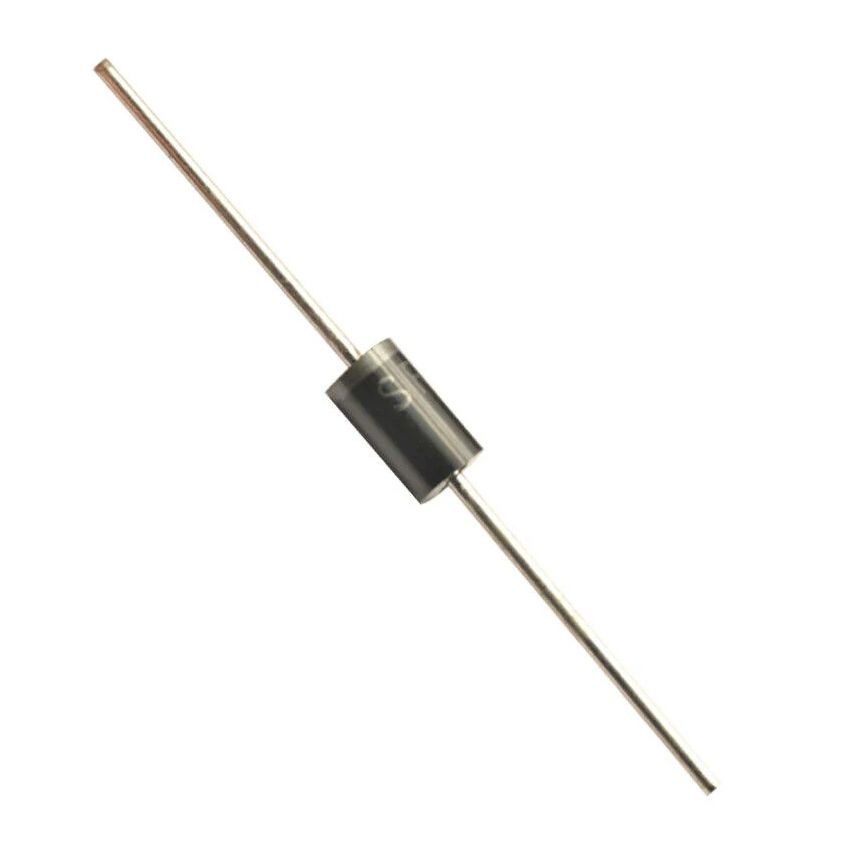

SR360, 3A 60V Schottky Barrier Rectifier Diode, DO-201AD

The SR360 is a Schottky Barrier Rectifier Diode designed for low voltage, high-frequency inverters, free-wheeling, and polarity protection applications. Its low forward voltage drop and high surge current capability make it ideal for efficient power conversion and protection circuits. The diode's robust construction and wide operating temperature range ensure consistent performance in various environments.​

Key Features:

• Low Forward Voltage Drop: Typical forward voltage drop of 0.50V at 3A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 80A, enhancing durability under transient conditions.​
• Fast Switching Speed: Suitable for high-frequency applications due to rapid response time.​
• Guard Ring Die Construction: Provides transient protection and enhances reliability.​
• Reliable Construction: Molded plastic case with UL 94V-0 flammability rating, ensuring safety and durability.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -65°C to +150°C.​

Additional Specifications:

• Type: Schottky Barrier Rectifier Diode
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 60V
• Forward Average Current (If): 3A
• Forward Voltage (Vf): 0.50V At 3A
• Maximum Surge Current: 80A
• Reverse Current (Ir): 0.5Ma At 25°C
• Dimensions: DO-201AD Package Dimensions
