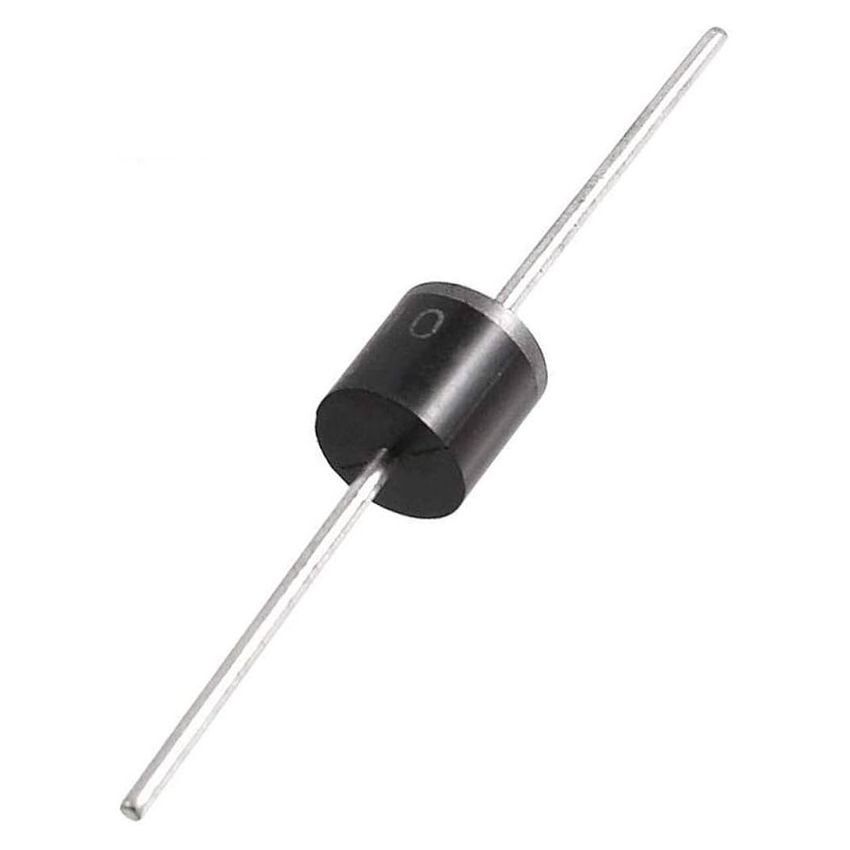

10A10, 10A 1000V General-Purpose Rectifier Diode, R-6

The 10A10 is a robust general-purpose rectifier diode designed for high-current applications. Its high surge current capability and low forward voltage drop make it ideal for use in power supplies, battery chargers, and motor control systems. The diode's reliable construction and wide operating temperature range ensure consistent performance in various environments.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1000V peak reverse voltage and 10A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 0.95V at 10A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 400A, enhancing durability under transient conditions.​
• Reliable Construction: Molded plastic case with UL 94V-0 flammability rating, ensuring safety and durability.​
• RoHS Compliant: Lead-free finish, adhering to environmental standards.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -55°C to +150°C.​

Additional Specifications:

• Type: General-Purpose Rectifier Diode​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 10A
• Forward Voltage (Vf): 0.95V At 10A
• Maximum Surge Current: 400A
• Reverse Current (Ir): 10μA at 25°C​
• Dimensions: R-6 Package Dimensions
