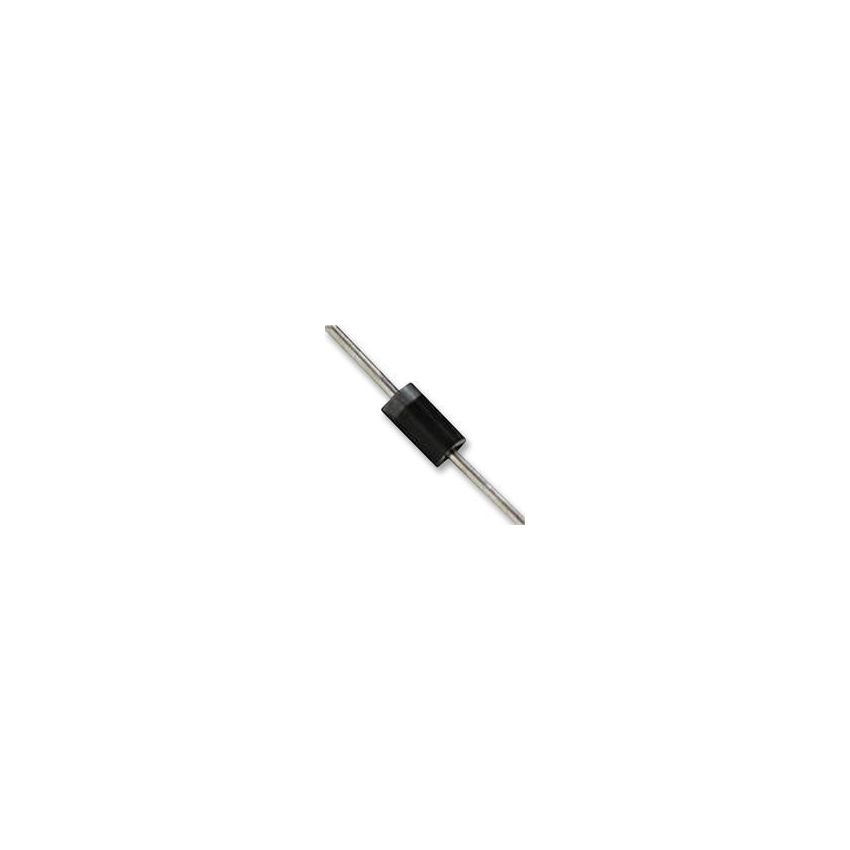

BY2000, 3A 2000V Standard Recovery Rectifier Diode, DO-201

The BY2000 is a robust standard recovery rectifier diode designed for high-voltage applications. Its high surge current capability and low forward voltage drop make it ideal for use in power supplies, battery chargers, and motor control systems. The diode's reliable construction and wide operating temperature range ensure consistent performance in various environments.​

Key Features:

• High Voltage and Current Ratings: Supports up to 2000V peak reverse voltage and 3A average forward current, suitable for high-voltage applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.1V at 3A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 100A, enhancing durability under transient conditions.​
• Reliable Construction: Molded plastic case with UL 94V-0 flammability rating, ensuring safety and durability.​
• RoHS Compliant: Lead-free finish, adhering to environmental standards.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -50°C to +150°C.​

Additional Specifications:

• Type: Standard Recovery Rectifier Diode​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 2000V
• Forward Average Current (If): 3A
• Forward Voltage (Vf): 1.1V At 3A
• Maximum Surge Current: 100A
• Reverse Current (Ir): 5μA at 2000V
• Dimensions: DO-201
