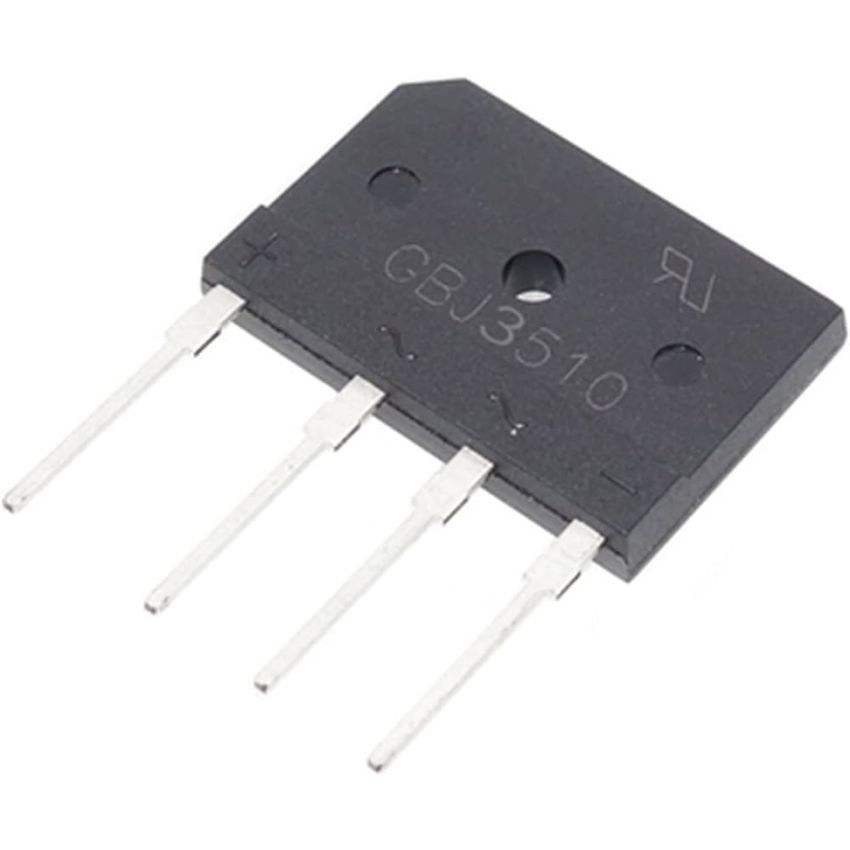

GBJ3510, 35A 1000V Single-Phase Bridge Rectifier, GBJ

The GBJ3510 is a robust single-phase bridge rectifier designed for high-current applications. Its glass passivated die construction ensures high reliability and stability over a wide temperature range. The electrically isolated case and high surge current capability make it ideal for use in power supplies, battery chargers, and motor control systems.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1000V peak reverse voltage and 35A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.1V per diode at 17.5A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 400A, enhancing durability under transient conditions.​
• Electrically Isolated Case: Provides 2500V RMS isolation voltage, ensuring safety and reliability.​
• Compact and Robust Design: Ideal for printed circuit board applications with through-hole mounting.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -55°C to +150°C.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 35A
• Forward Voltage (Vf): 1.1V At 17.5A
• Maximum Surge Current: 400A
• Reverse Current (Ir): 10μA At 25°C
• Dimensions: 28.5x20.5x4.5Mm
