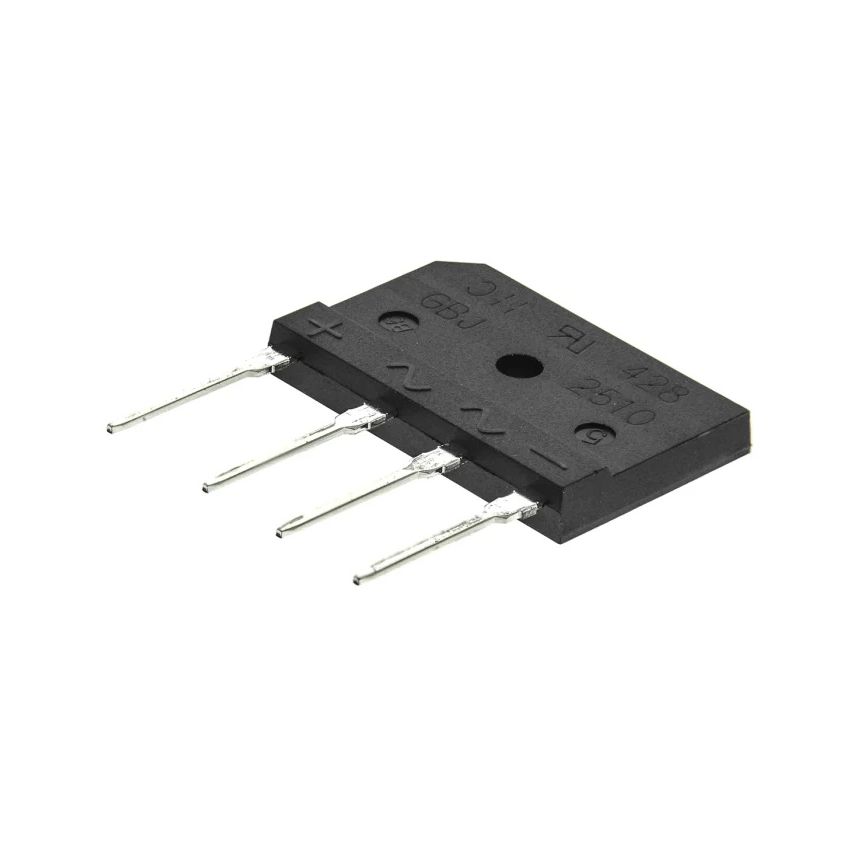

GBJ2510, 25A 1000V Single-Phase Bridge Rectifier, GBJ

The GBJ2510 is a reliable single-phase bridge rectifier ideal for power supplies, battery chargers, and motor control systems. Its high current and voltage capabilities, together with its compact package and strong surge resistance, make it a versatile solution for both commercial and industrial power conversion systems.

Key Features:

• High Voltage and Current Ratings: Supports up to 1000V peak reverse voltage and 25A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.0V per diode at 12.5A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 350A, enhancing durability under transient conditions.​
• Glass Passivated Die Construction: Ensures high reliability and stability over a wide temperature range.​
• Electrically Isolated Case: Provides 2500V RMS isolation voltage, ensuring safety and reliability.​
• Compact and Robust Design: Ideal for printed circuit board applications with through-hole mounting.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 25A
• Forward Voltage (Vf): 1V At 12.5A
• Maximum Surge Current: 300A
• Reverse Current (Ir): 10µA At 1000V
• Dimensions: 28.5z20.5x4.5Mm
