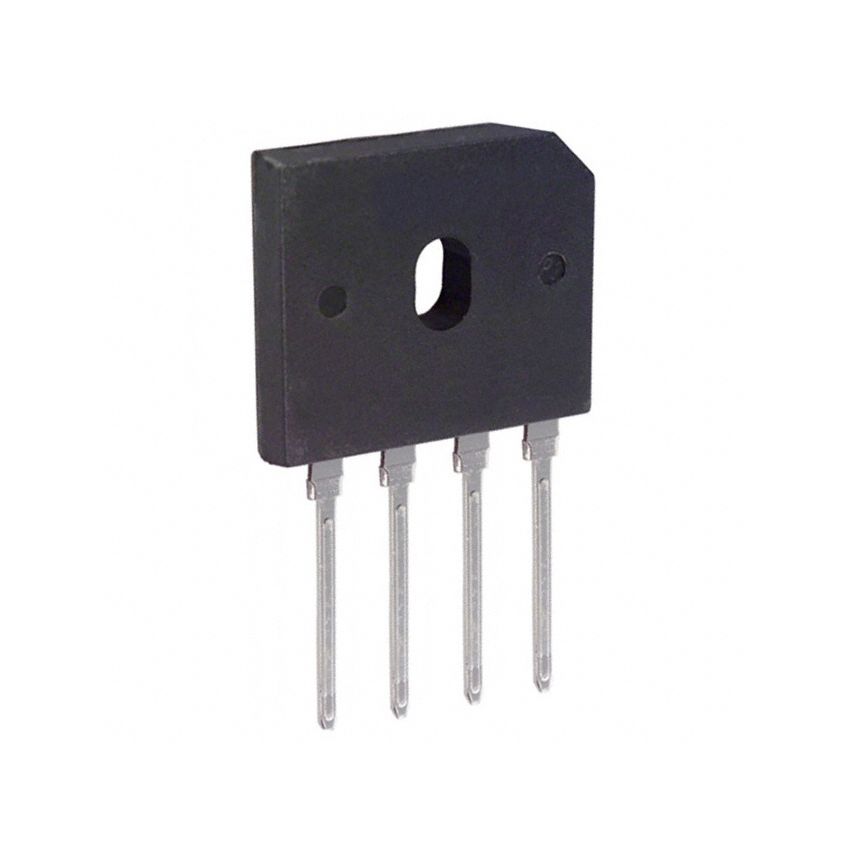

GBU808, 8A 800V Single-Phase Bridge Rectifier,

The GBU808 is a robust single-phase bridge rectifier designed for high-current applications. Its glass passivated die construction ensures high reliability and stability over a wide temperature range. The electrically isolated case and high surge current capability make it ideal for use in power supplies, battery chargers, and motor control systems.​

Key Features:

• High Voltage and Current Ratings: Supports up to 800V peak reverse voltage and 8A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.0V at 4A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 200A, enhancing durability under transient conditions.​
• Glass Passivated Die Construction: Ensures high reliability and stability over a wide temperature range.​
• Electrically Isolated Case: Provides 1500V RMS isolation voltage, ensuring safety and reliability.​
• Compact and Robust Design: Ideal for printed circuit board applications with through-hole mounting.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 800V
• Forward Average Current (If): 8A
• Forward Voltage (Vf): 1V At 4A
• Maximum Surge Current: 200A
• Reverse Current (Ir): 5μA At 800V
• Dimensions: 21.8x7.9x18.8Mm
