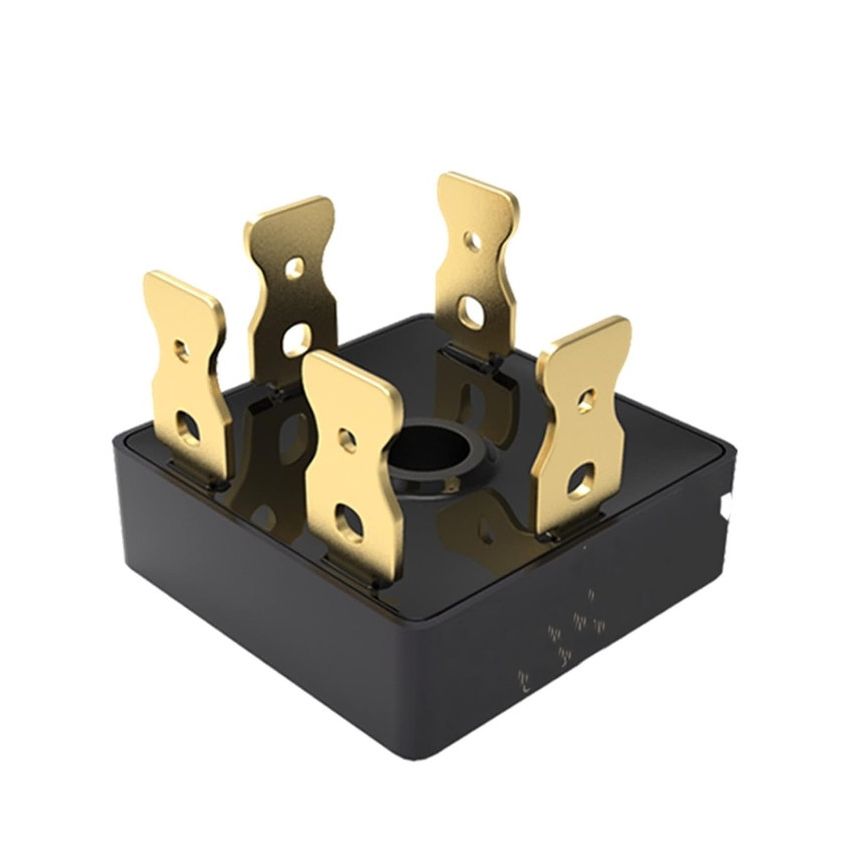

6MT160, 35A 1600V Three-Phase Bridge Rectifier, D-63

The 36MT160 is a robust three-phase bridge rectifier designed for high-current applications. Its compact, encapsulated design ensures efficient and reliable operation in general-purpose and instrumentation applications. The electrically insulated case and high surge current capability make it ideal for use in power supplies, battery chargers, and motor control systems.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1600V peak reverse voltage and 35A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.19V per diode at 40A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 500A, enhancing durability under transient conditions.​
• Electrically Isolated Case: Provides 2700V RMS isolation voltage, ensuring safety and reliability.​
• Versatile Mounting Options: Features universal terminals (push-on, wrap-around, or solder) and a central mounting hole for secure installation.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -55°C to +150°C.​

Additional Specifications:

• Type: Three Phase Bridge Rectifier
• Mounting Style: Chassis Mount
• Peak Reverse Repetitive Voltage (VRRM): 1600V
• Forward Average Current (If): 35A
• Forward Voltage (Vf): 1.19V
• Maximum Surge Current: 500A
• Reverse Current (Ir): 100μA At 25°C
• Dimensions: 28.5x25.3x12.25Mm
