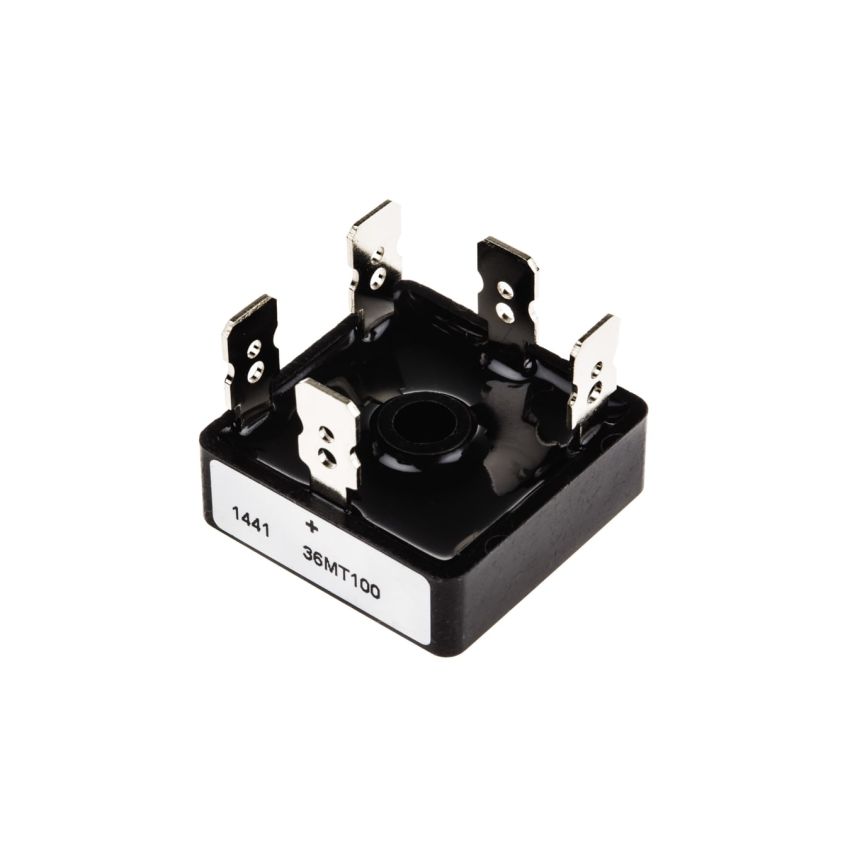

36MT100A,Three-Phase Bridge Rectifier,1000V,35A,500A

The 36MT100A is a high-performance three-phase bridge rectifier designed for general-purpose rectification in a wide range of industrial and consumer applications. With a peak reverse repetitive voltage (VRRM) of 1000V and a forward average current of 35A, it ensures reliable and efficient performance in high-power environments. This rectifier is ideal for use in power supply circuits, motor controllers, and other equipment requiring robust rectification under heavy loads.

Its high surge current capacity of 500A ensures the rectifier can handle inrush currents during start-up or power fluctuations. With a low forward voltage drop of just 1.19V, the 36MT100A maximizes efficiency by reducing power losses. The device is housed in a compact D-63 package with nickel-plated terminals, offering flexible mounting options including push-on, wrap-around, or solder connections. Its UL certification further guarantees that the 36MT100A meets stringent safety standards for reliable performance in various applications.

Whether you're designing power electronics for industrial systems, motor drivers, or renewable energy applications, the 36MT100A three-phase bridge rectifier provides a cost-effective solution with reliable operation and high surge protection. Its compact size and durable construction make it the ideal choice for applications requiring high current and voltage capabilities.

• High Current Capability: With a forward average current rating of 35A, the 36MT100A bridge rectifier is designed to handle significant electrical loads in industrial and consumer applications.
• High Voltage Rating: Provides a peak reverse repetitive voltage (VRRM) of 1000V, making it suitable for high-voltage applications requiring reliable rectification.
• Surge Current Protection: The rectifier can withstand a maximum surge current of 500A, ensuring stable operation even during power surges and spikes.
• Efficient Thermal Management: The high thermal conductivity package and electrically insulated case offer superior heat dissipation for longer operational life.
• Multiple Mounting Options: Features a flexible mounting style, including options for push-on, wrap-around, or solder connections, for versatile use in different installation setups.
• Low Forward Voltage Drop: With a low forward voltage (Vf) of just 1.19V, the 36MT100A offers efficient power rectification with minimal energy loss, increasing the efficiency of your system.
