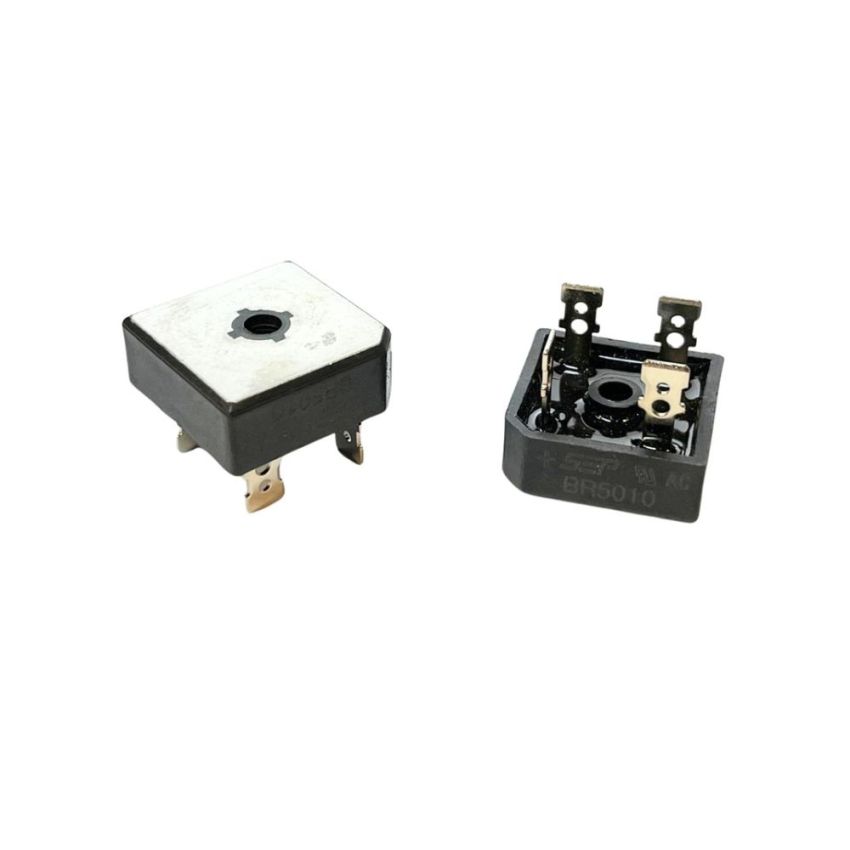

BR5010 ,Bridge Rectifier, 50A 1000V

The BR5010 Bridge Rectifier is a high-performance single-phase silicon bridge rectifier designed for a wide range of applications. With a voltage rating of up to 1000V and a current rating of 50A, this device ensures excellent rectification efficiency. Its plastic encapsulation with an integrated heatsink offers maximum heat dissipation and ensures durability.

This bridge rectifier provides surge overload ratings of up to 400 amperes, making it ideal for power supply circuits, motor control systems, and industrial applications. It features low forward voltage drop for energy efficiency and reliable operation. Its compact and molded case design with solderable faston lugs ensures easy integration into various circuit assemblies.

Key Features:

• Voltage Range: 50V to 1000V with a maximum reverse voltage rating for high reliability.
• Current Capacity: Handles up to 50A for robust performance in demanding applications.
• Surge Current Capability: Up to 400A non-repetitive peak forward surge current for enhanced durability.
• Low Forward Voltage Drop: Minimizes power loss and improves overall circuit efficiency.
• Built-in Heatsink: Plastic case with integrated heatsink ensures effective thermal management.
• Compact and Versatile Design: Molded plastic case with solderable faston lugs for easy mounting and integration.
