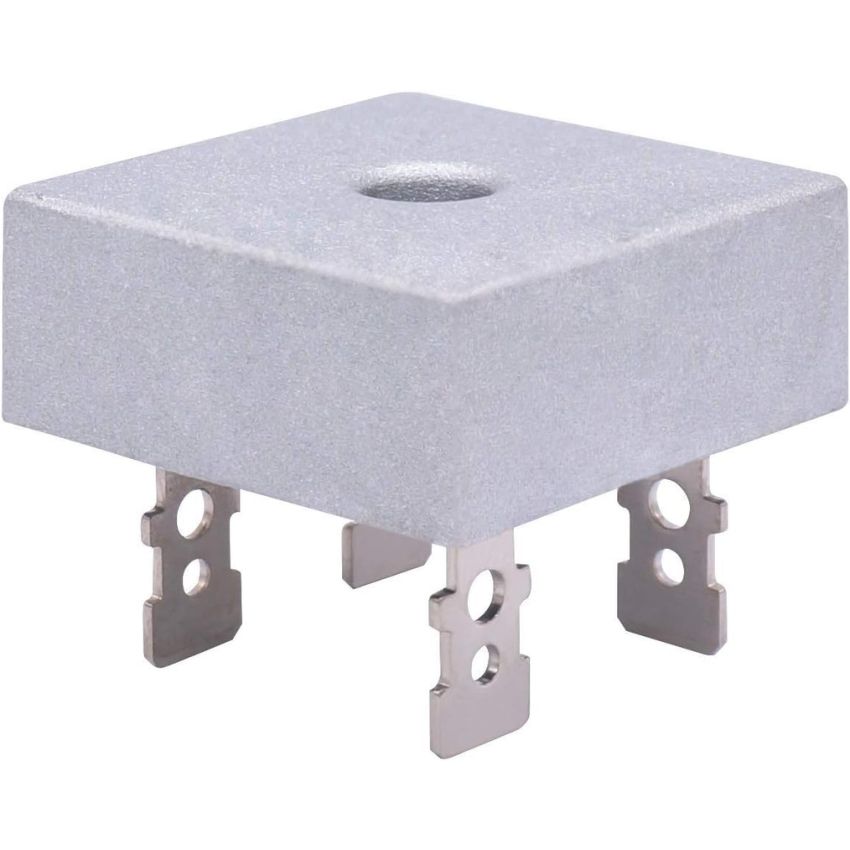

KBPC5010, 50A 1000V Single-Phase Bridge Rectifier, Metal Case

The KBPC5010 is a robust single-phase bridge rectifier designed for high-current applications. Its metal case construction ensures efficient heat dissipation, while the electrically isolated base enhances safety. With its high surge current capability and low forward voltage drop, the KBPC5010 is ideal for use in power supplies, battery chargers, and motor control systems.​

Key Features:

• High Current and Voltage Ratings: Supports up to 1000V peak reverse voltage and 50A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.2V per diode at 25A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 450A, enhancing durability under transient conditions.​
• Electrically Isolated Metal Case: Provides maximum heat dissipation and safety with 2500V isolation voltage.​
• Versatile Mounting Options: Features 0.25" Faston terminals and a central mounting hole for secure installation.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -55°C to +150°C.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier
• Mounting Style: Panel Mount
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 50A
• Forward Voltage (Vf): 1.2V
• Maximum Surge Current: 450A
• Reverse Current (Ir): 10μA At 25°C
• Dimensions: 28x28x25Mm
