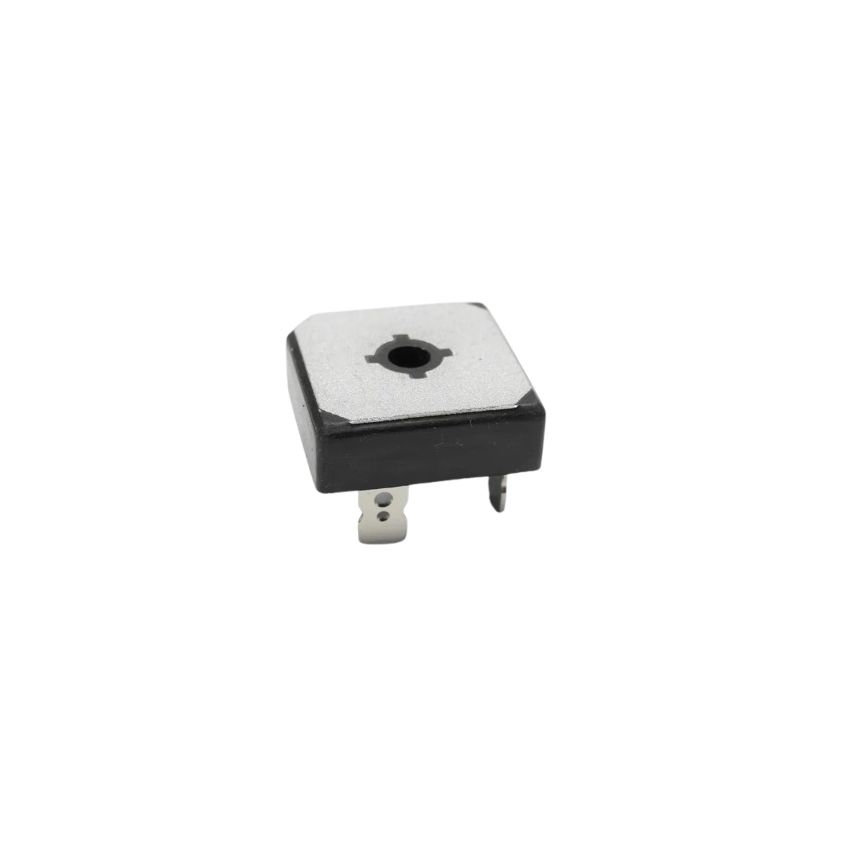

36MB120A, 35A 1200V Single-Phase Bridge Rectifier Module, D-34

The 36MB120A is a compact, encapsulated single-phase bridge rectifier module designed for efficient and reliable operation in general-purpose and instrumentation applications. Its high voltage and current handling capabilities, combined with versatile mounting options and robust thermal management, make it an ideal choice for demanding power rectification tasks.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1200V reverse voltage and 35A average forward current, suitable for high-power applications.​
• Compact and Robust Design: Encapsulated module with a high power-to-volume ratio, ensuring efficient operation in space-constrained environments.​
• Versatile Mounting Options: Universal 3-way terminals (push-on, wrap-around, or solder) facilitate flexible installation.​
• Efficient Thermal Management: Electrically insulated case with high thermal conductivity for effective heat dissipation.​
• High Surge Capability: Capable of handling surge currents up to 500A, enhancing durability under transient conditions.​
• Compliance and Reliability: UL E62320 approved with nickel-plated terminals solderable as per MIL-STD-202 Method 208.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier​
• Mounting Style: Chassis Mount
• Peak Reverse Repetitive Voltage (VRRM): 1200V
• Forward Average Current (If): 35A
• Forward Voltage (Vf): 1.14V
• Maximum Surge Current: 500A
• Reverse Current (Ir): 10µA At 1200V
• Dimensions: D-34 Package
