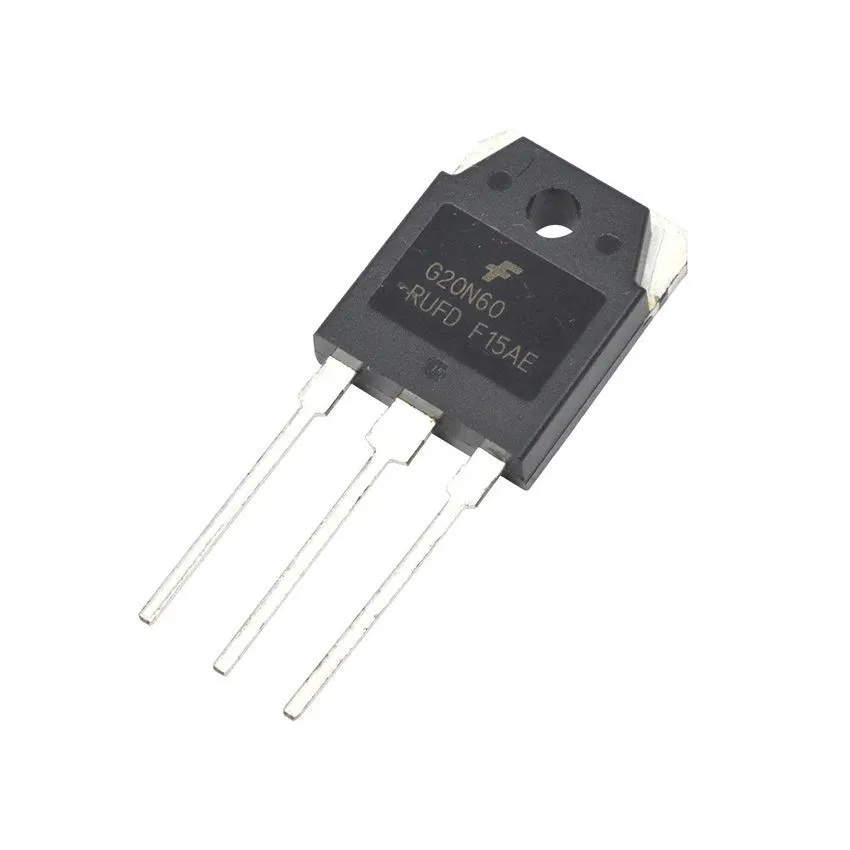

G20N60 600 V, 20 A N‑Channel Fast IGBT (TO‑247‑3)

The G20N60 is a 600 V, 20 A N-Channel IGBT designed for high-speed switching in power electronics applications. Housed in a TO‑247‑3 package, this insulated-gate bipolar transistor combines the high input impedance of a MOSFET with the low saturation voltage of a bipolar transistor. It is engineered for efficiency in demanding applications like SMPS, motor drives, and welding equipment, offering fast switching performance and robust reliability. The device is optimized for use in circuits requiring high power density and minimal switching losses.

Key Features:

• 600 V collector-emitter voltage rating for high-voltage operations
• 20 A continuous collector current ensures strong load handling
• Low saturation voltage (V_CE(sat)) for energy-efficient operation
• Fast switching speed ideal for high-frequency inverters and converters
• TO‑247‑3 package for efficient heat dissipation and easy PCB mounting
• Suitable for induction heating, SMPS, motor control, and UPS systems
