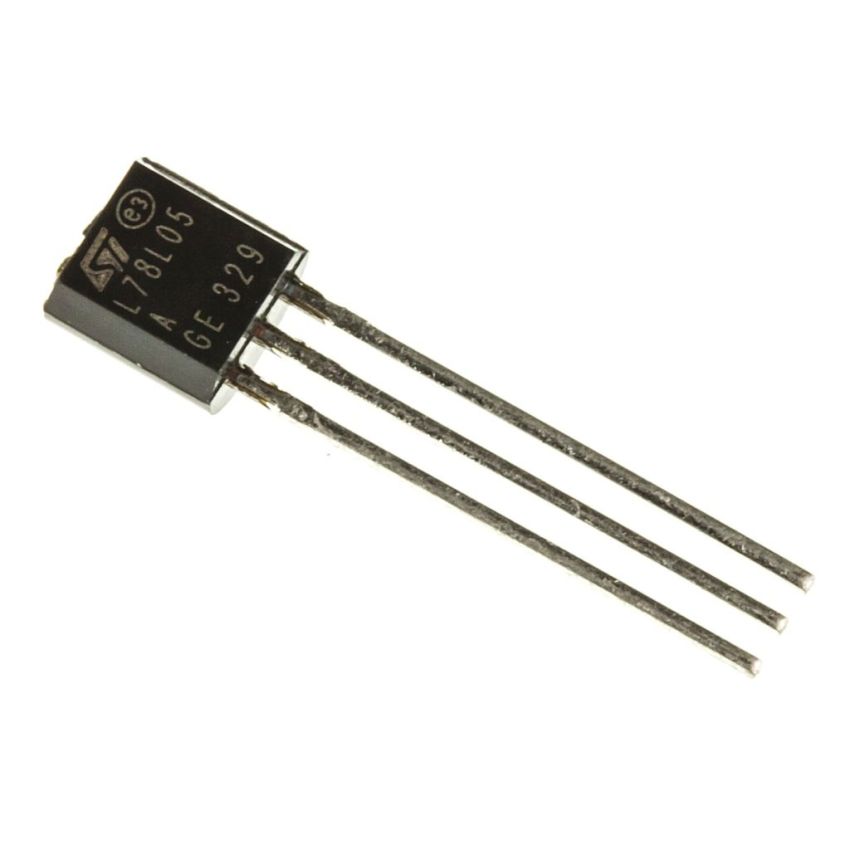

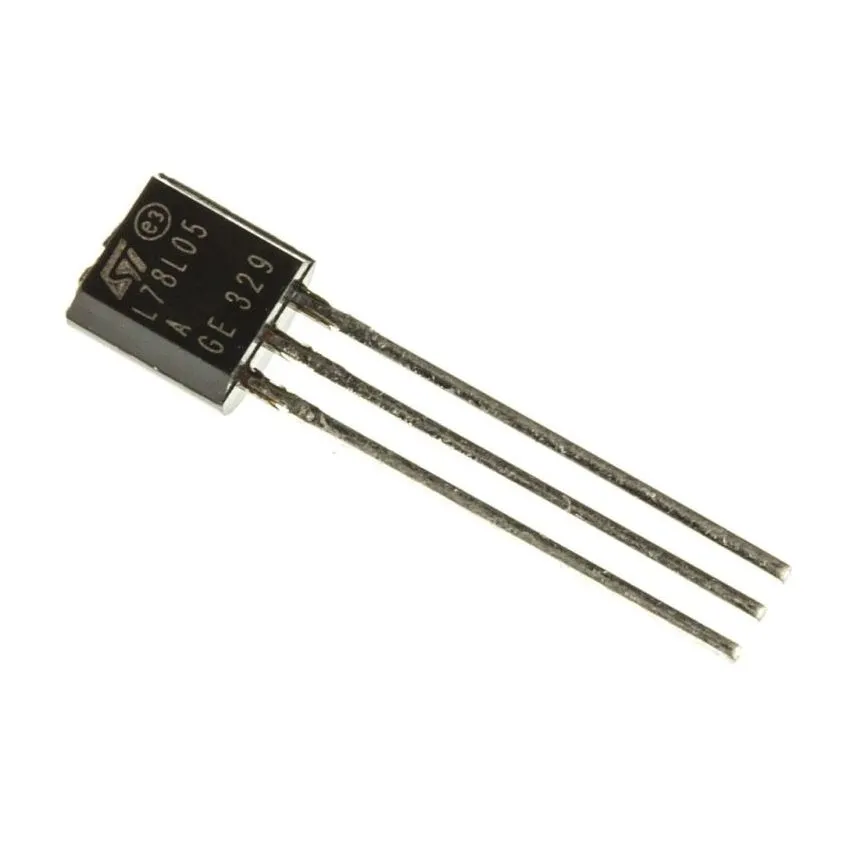

L78L05ACZ, 5V 100mA Positive Voltage Regulator, TO-92

The L78L05ACZ is a three-terminal positive voltage regulator designed to provide a stable 5V output with up to 100mA of current. It features internal current limiting and thermal shutdown, ensuring robust protection against overload and overheating. This makes it suitable for a wide range of applications, including local on-card regulation and elimination of noise associated with single-point regulation. Its compact TO-92 package allows for easy integration into various electronic circuits.​

Key Features:

• Fixed 5V Output Voltage: Provides a stable 5V output for consistent performance.​
• 100mA Output Current Capability: Delivers up to 100mA, suitable for low-power applications.​
• Internal Thermal Overload Protection: Safeguards the device against overheating.​
• Short-Circuit Protection: Protects the regulator from damage due to output shorts.​
• No External Components Required: Simplifies design and reduces component count.​
• Compact TO-92 Package: Ideal for space-constrained applications.​

Additional Specifications:

• Package Type: TO-92
• Supply Voltage: 7-30V
• Current: 100Ma
• Type: Positive Voltage Regulator
