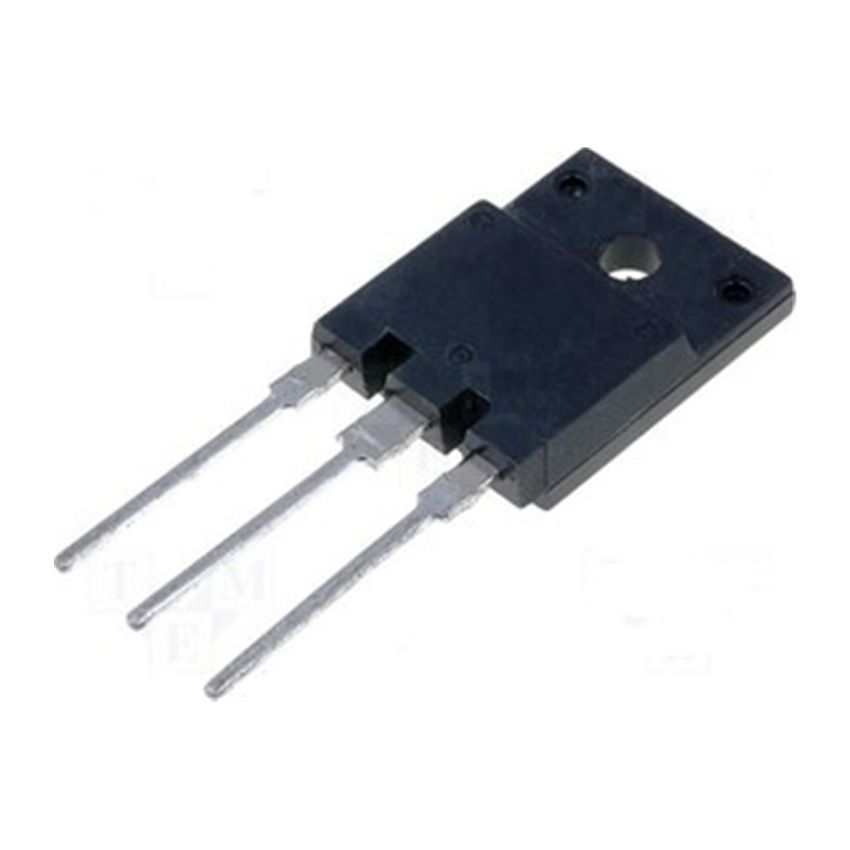

2SD1545 ,NPN Power Transistor ,1500V, 5A

The 2SD1545 is a high-performance Silicon NPN Power Transistor designed for high voltage and fast switching applications. It is specifically optimized for color TV horizontal output and switching regulator applications, delivering outstanding reliability and efficiency. With its robust structure and low saturation voltage, the 2SD1545 ensures effective performance in demanding environments. Its TO-3P(H)S package allows for easy mounting and heat dissipation, making it suitable for high-power electronic designs. The device features a high breakdown voltage of 1500 volts and a maximum continuous collector current of 5 amps, ensuring dependable operation under high-stress conditions.

Key Features :

• High Breakdown Voltage: 1500 volts collector-to-base and 600 volts collector-to-emitter.
• High Switching Speed for demanding applications.
• Low Saturation Voltage for efficient performance.
• Maximum Collector Current: Continuous 5 amps, Pulse 10 amps.
• Maximum Power Dissipation: 50 watts (at 25°C case temperature).
• TO-3P(H)S package for efficient thermal performance.
