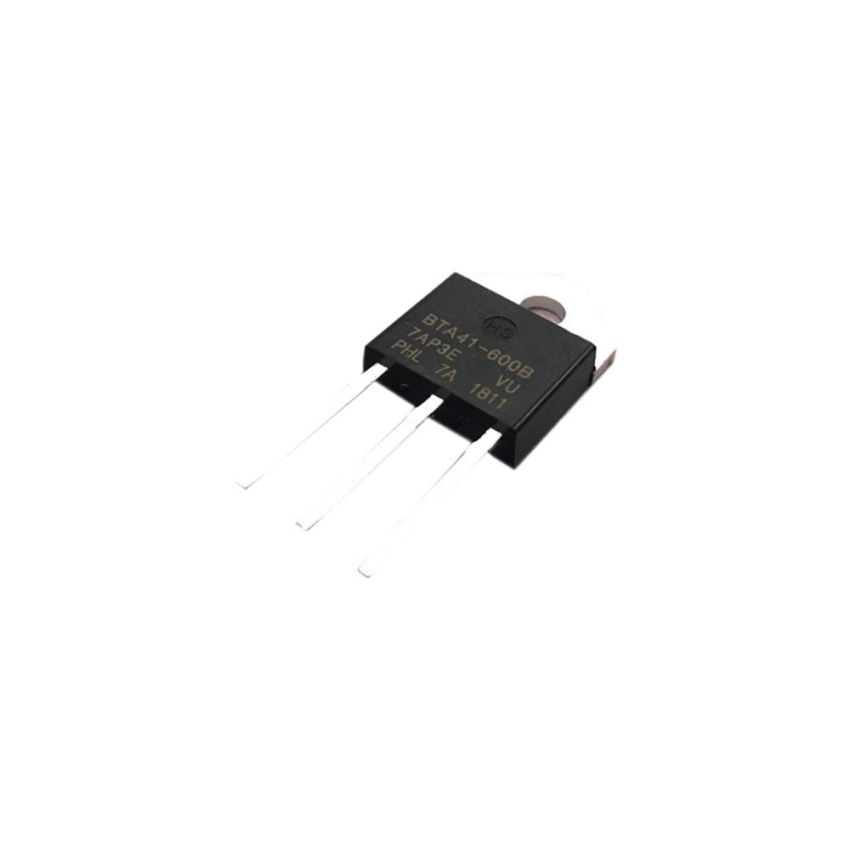

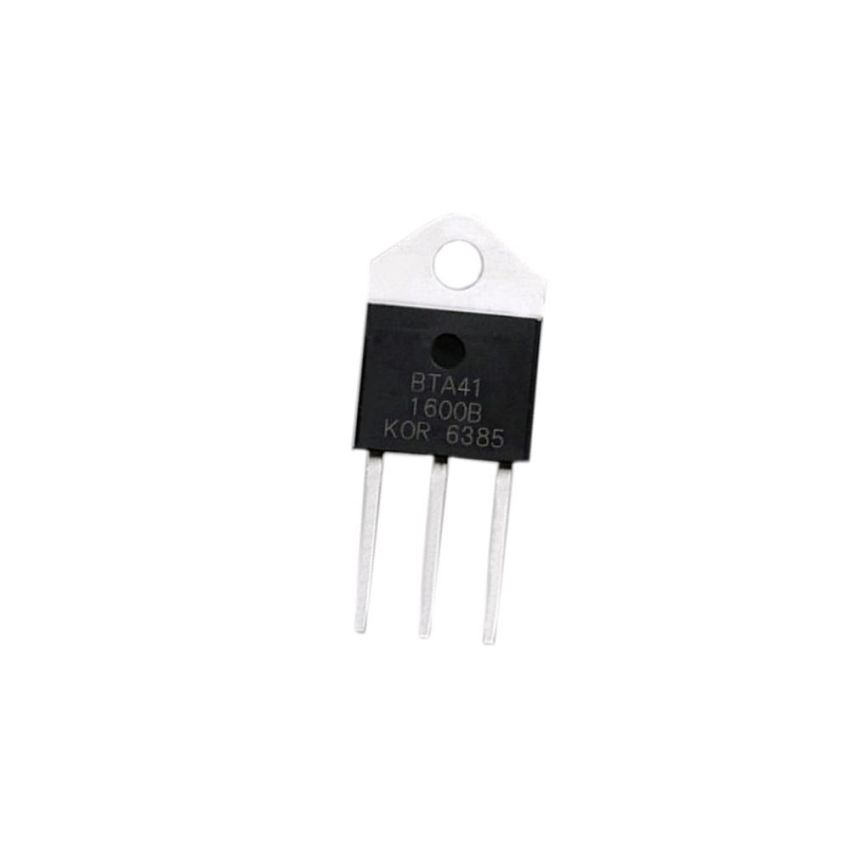

BTA41-600B,Triac,TO-3P,600V,40A

The BTA41-600B is a high-power Triac designed for switching and controlling AC loads. Rated for 600V and capable of handling 40A RMS on-state current, this Triac is widely used in motor speed control, heating systems, phase control, and light dimming applications. Its insulated TO-3P package ensures high electrical isolation and superior thermal performance.

The BTA41-600B features a low Gate Trigger Voltage (Vgt) of 1.3V and a Gate Trigger Current (Igt) of 50mA, making it highly responsive and easy to trigger with standard control circuits. Additionally, its robust Non-Repetitive Surge Peak On-State Current (ITSM) of 420A makes it suitable for demanding applications where surge currents are a concern, such as motor startup and inductive loads.

This Triac is designed to perform reliably across a wide operating temperature range of -40°C to +125°C, ensuring stable operation even in extreme environments. Its Rated Repetitive Off-State Voltage (VDRM) of 600V allows it to be used in high-voltage AC switching applications, including industrial power systems and consumer electronics.

• High Voltage and Current Capacity: Capable of handling up to 600V and 40A RMS on-state current.
• TO-3P Insulated Package: Provides high electrical isolation, ensuring safe and reliable operation in power circuits.
• Low Gate Trigger Voltage (Vgt): Requires only 1.3V to trigger, making it easy to control in various switching applications.
• Non-Repetitive Surge Peak On-State Current: Can handle surges up to 420A, making it suitable for heavy-duty AC control.
• Wide Operating Temperature Range: Capable of operating from -40°C to +125°C, ensuring stable performance under extreme conditions.
• Rated Repetitive Off-State Voltage (VDRM): 600V, providing reliability in high-voltage applications.
