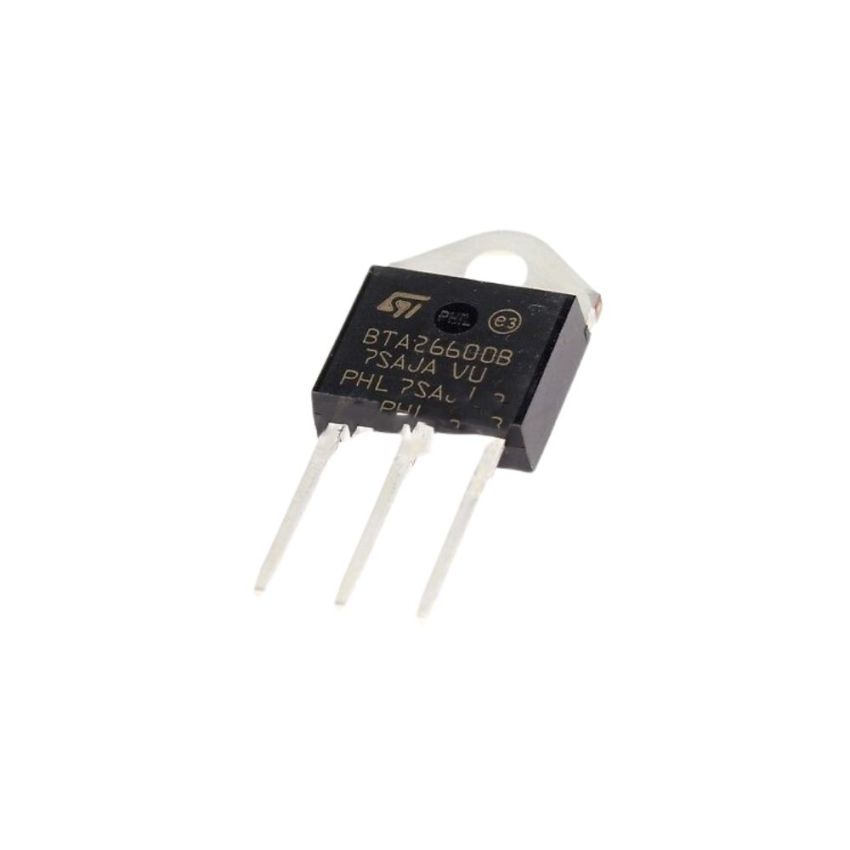

BTA26-600B, Triac, TO-220

The BTA26-600B is a high-performance 25A Triac designed for AC power switching and control applications. With a rated repetitive off-state voltage (VDRM) of 600V, it is well-suited for dimmers, motor speed controllers, heating regulation, and industrial power control.

Featuring a low gate trigger voltage (Vgt) of 1.5V and a gate trigger current (Igt) of 50mA, the BTA26-600B is highly sensitive and can be triggered with low power. Its high surge current capability of 250A (ITSM at 50Hz) ensures robustness under high inrush conditions.

Encased in a TO-220 package, this Triac provides excellent heat dissipation and can operate over a wide temperature range of -40°C to +125°C, making it ideal for demanding industrial, commercial, and residential applications.

• High Voltage Rating: Supports a 600V repetitive off-state voltage (VDRM), making it ideal for AC power control applications.
• Low Gate Trigger Voltage: Operates with a maximum gate trigger voltage (Vgt) of 1.5V, ensuring easy control.
• Efficient Current Handling: Supports 25A RMS continuous current for industrial and consumer applications.
• High Surge Capability: Withstands 250A non-repetitive surge peak on-state current (ITSM) at 50Hz, ensuring reliability under inrush conditions.
• Wide Operating Temperature Range: Functions effectively between -40°C and +125°C, suitable for various environments.
• TO-220 Package: Optimized for efficient thermal dissipation and compact integration in high-power circuits.
