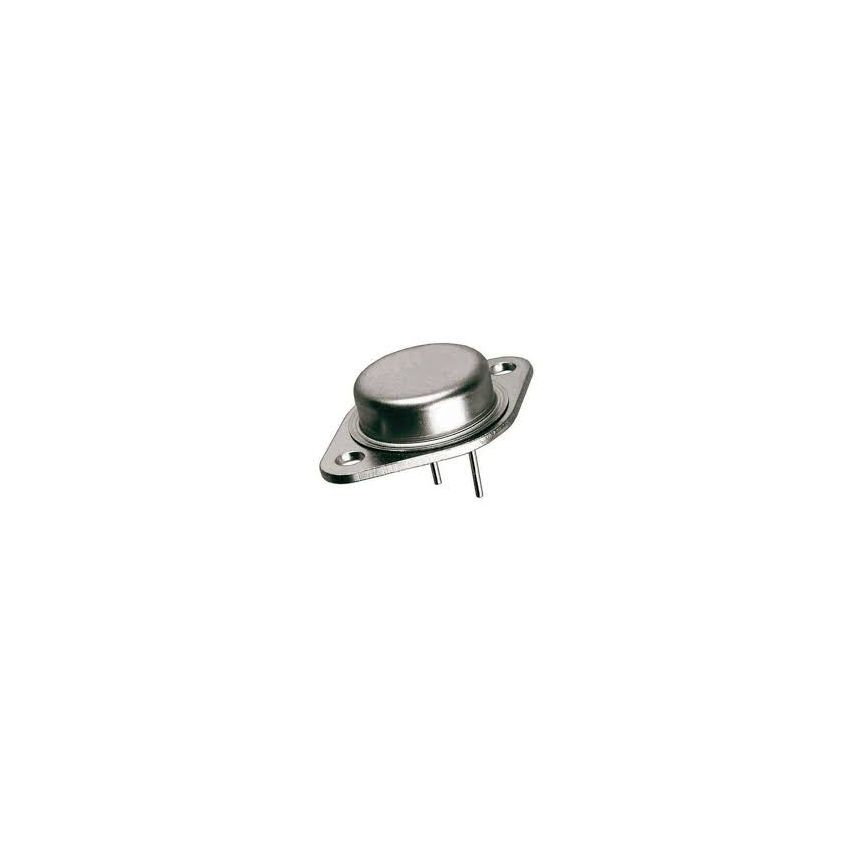

MJ15003 NPN Silicon Power Transistor

The MJ15003 is a high-power NPN silicon transistor designed for high-power audio, disk head drivers, and other linear applications. It is widely regarded as a staple in the audio industry for high-fidelity power amplifiers due to its excellent linearity and high safe operating area (SOA). With a 20 Ampere current capacity and a 250 Watt power rating, it is built to handle heavy loads with ease. It is the NPN complement to the MJ15004 PNP transistor. The device is housed in a hermetically sealed TO-3 metal can, which provides exceptional heat dissipation when coupled with a large heat sink. This rugged construction makes the MJ15003 highly reliable in both professional audio equipment and demanding industrial power supplies where maintaining signal integrity under high thermal stress is critical.

Key Features:

Continuous collector current (IC) capability of 20 Amperes.

Total power dissipation (PD) of 250 Watts at 25 degrees Celsius case temperature.

DC current gain (hFE) of 25 to 150 at 5.0 Amperes.

Low collector emitter saturation voltage typically 1.0 Volt at 5.0 Amperes.

Robust TO-3 (TO-204AA) metal can package for high-power thermal stability.
