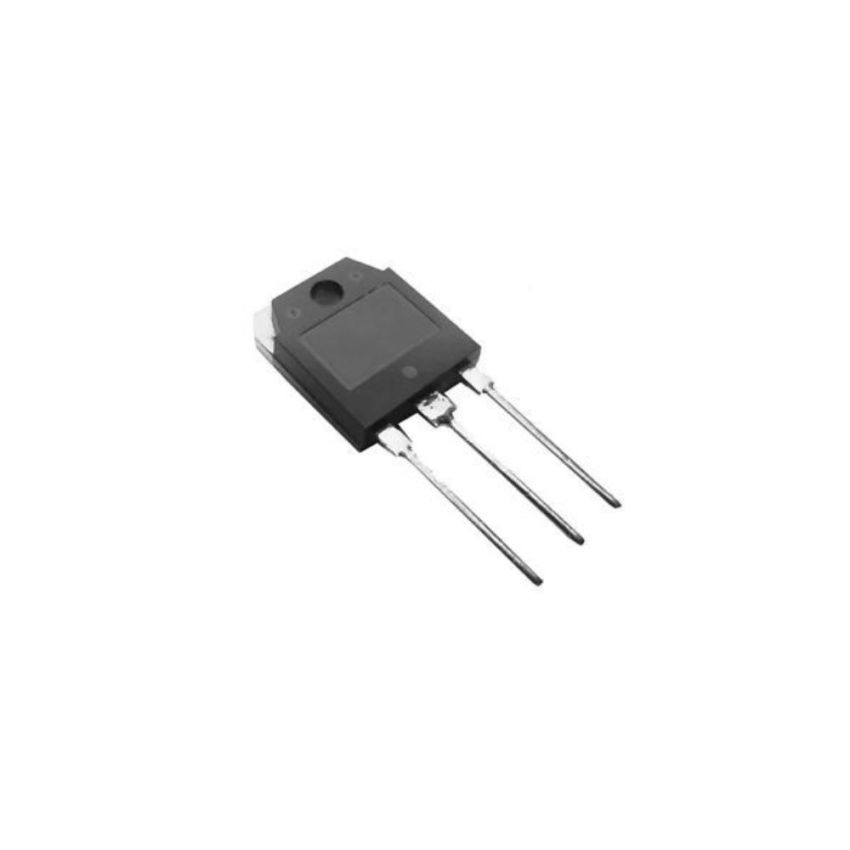

2SC3552, NPN Power Transistor, TO-3PB

The 2SC3552 is a high-voltage NPN power transistor designed for switching regulator applications. It features a high collector-base voltage of 1100 V and a collector-emitter voltage of 800 V, with a collector current capacity of 12 A. The transistor offers fast switching speeds with a transition frequency of 15 MHz, making it suitable for high-efficiency applications. Its low saturation voltage ensures minimal power loss during operation. Encased in a TO-3PB package, the 2SC3552 provides reliable thermal performance, ensuring durability in demanding environments.

• High Breakdown Voltage: Collector-Base Voltage (V_CBO) of 1100 V, suitable for high-voltage applications.
• High Collector-Emitter Voltage: Rated at 800 V, ensuring robust performance.
• High Collector Current: Supports up to 12 A, ideal for power-intensive operations.
• Fast Switching Speed: Transition frequency (f_T) of 15 MHz, enabling efficient high-speed switching.
• Low Saturation Voltage: Ensures efficient operation with minimal power loss.
• Wide Area of Safe Operation (ASO): Provides reliable performance across various operating conditions.
