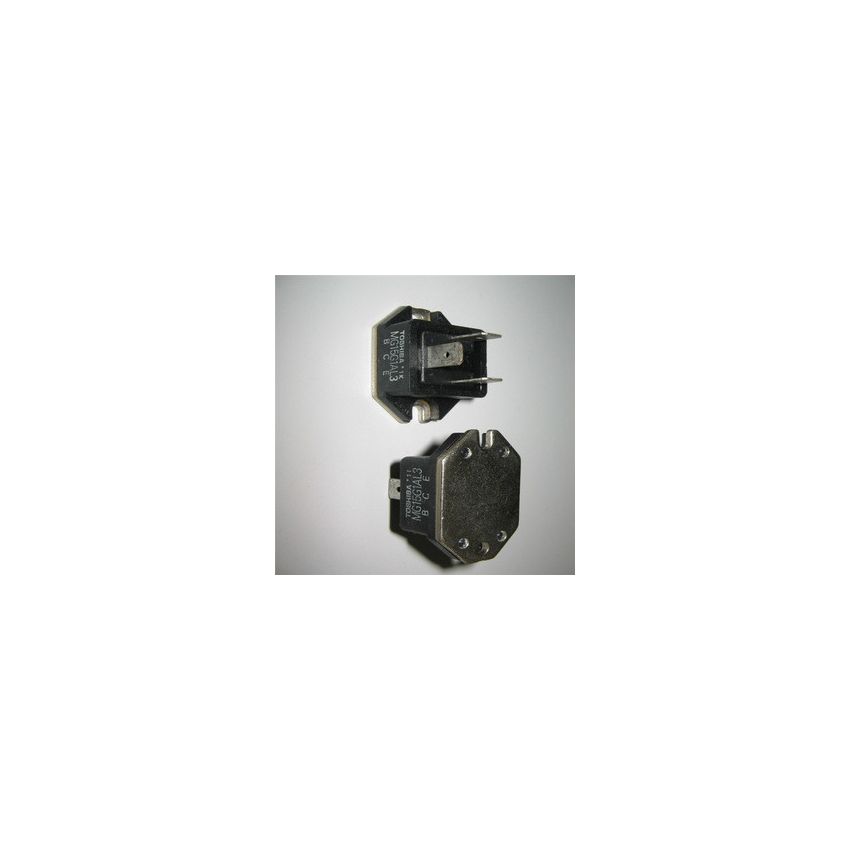

MG15G1AL3,Darlington Power Module,600V,15A

SKU
SCTx3323
Part Number
MG15G1AL3
Brand:
Delivery in 2-5 Weeks.
Pre-Order
Only 1 left

Guarantee safe & secure checkout

The MG15G1AL3 is a high-power switching silicon NPN triple-diffused Darlington power module designed for motor control and high-power switching applications. It features a built-in free-wheeling diode, high DC current gain, and low saturation voltage for efficient and reliable performance. This module provides high-speed operation with a maximum switching time of 2us and is ideal for applications demanding high power efficiency.

The isolated collector design ensures safety and reliability in various industrial environments. With a robust TO-3P package, this module ensures excellent thermal performance and durability.

Key Features :

  • High Voltage Rating: Withstand up to 600V (VCBO and VCEO) for high-power applications.
  • High Current Capability: Supports continuous collector current up to 15A and a peak of 30A for demanding applications.
  • Built-in Free-Wheeling Diode: Enhances performance in inductive load applications, such as motor control.
  • Low Saturation Voltage: Ensures efficient operation with a VCE(sat) maximum of 2.0V at IC = 15A.
  • Fast Switching: Achieves a maximum reverse recovery time (trr) of 2us for high-speed operations.
  • Thermal Efficiency: Features a thermal resistance junction-to-case of 1.0°C/W for the transistor.
Mounting Style Screw Mount
