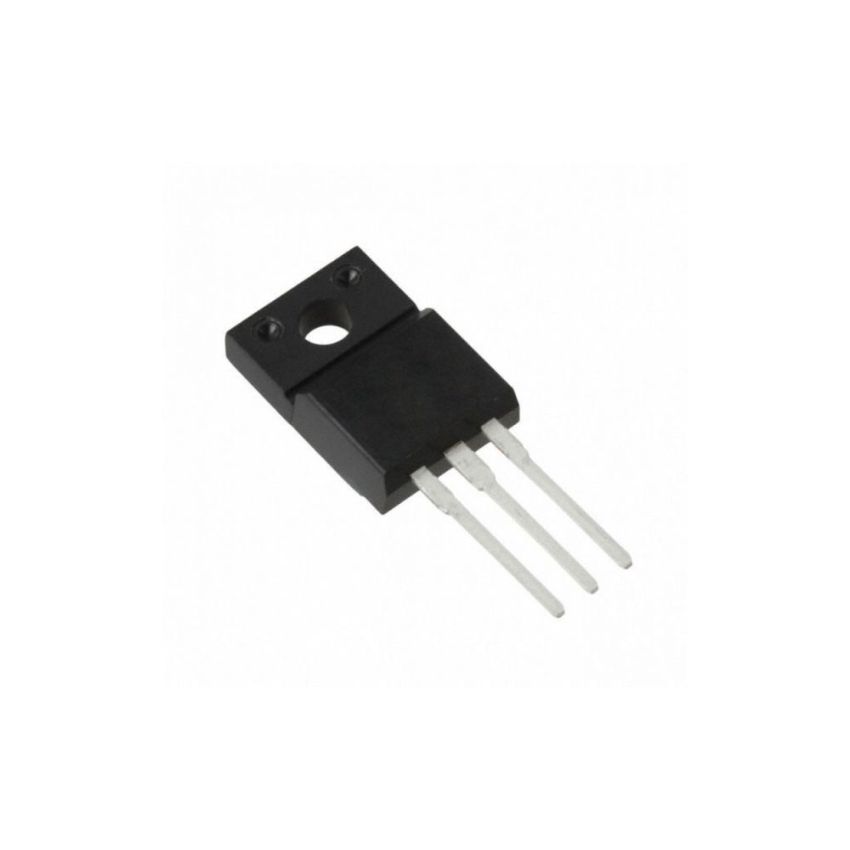

FCH10A15, Schottky Barrier Diode, TO-220 Full-Mold Package

The FCH10A15 is a Schottky Barrier Diode designed for high-efficiency rectification in power supply and industrial equipment applications. Housed in a TO-220 Full-Mold package, it offers fully molded isolation, enhancing thermal performance and electrical isolation. The dual diode configuration with a common cathode simplifies circuit design, making it ideal for use in various power management applications. Its low forward voltage drop and high surge current capability ensure efficient performance, while its ability to operate at high temperatures makes it suitable for demanding environments.

• Low Forward Voltage Drop – Exhibits a forward voltage drop of 0.88V at 5A, enhancing efficiency.
• High Surge Current Capability – Withstands non-repetitive peak forward currents up to 130A, suitable for applications with transient high-current demands.
• Fully Molded Isolation – Features a fully molded isolated package, providing enhanced thermal performance and electrical isolation.
• Dual Diode Configuration – Contains two diodes with a common cathode, facilitating simplified circuit design.
• High Temperature Operation – Capable of operating at junction temperatures up to 150°C, ensuring reliability in high-temperature environments.
• Low Reverse Leakage Current – Maintains a reverse current of 1mA at the maximum repetitive reverse voltage, contributing to overall efficiency.
