G4PH40UD, N-Channel UltraFast IGBT with Soft Recovery Diode, TO-247AC

The G4PH40UD is an N-Channel Insulated Gate Bipolar Transistor (IGBT) designed for high-speed power switching applications. Combining the high input impedance of a MOSFET with the low on-state conduction loss of a bipolar transistor, this UltraFast IGBT is ideal for use in high-frequency inverters, resonant converters, and induction heating applications.

With a Collector-Emitter Voltage (V_CES) rating of 1200V and a Continuous Collector Current of 41A at 25°C, the G4PH40UD provides robust performance for demanding applications. Its low Collector-Emitter Saturation Voltage (V_CE(on)) of 2.43V at 21A minimizes conduction losses, while its UltraFast switching capabilities ensure efficient high-speed operation.

The device is optimized for high operating frequencies, supporting up to 40 kHz in hard switching and over 200 kHz in resonant mode, making it suitable for a wide range of power conversion applications. Additionally, it features an integrated HEXFRED™ ultrafast, ultra-soft-recovery anti-parallel diode, improving overall performance by minimizing recovery characteristics and reducing the need for snubbing.

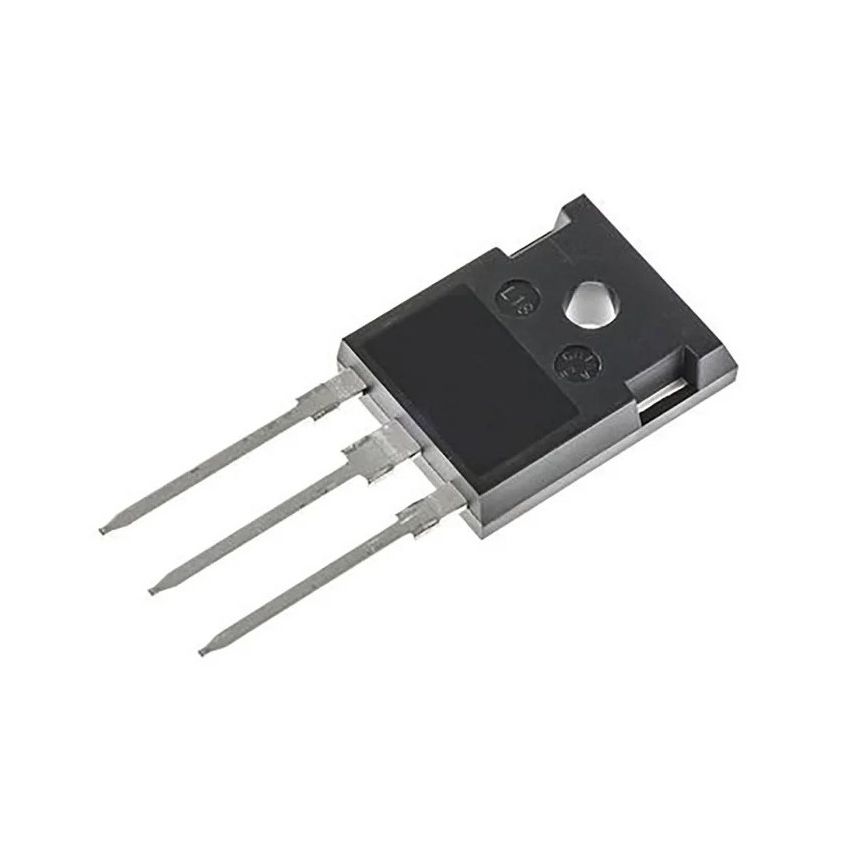

Encased in a standard TO-247AC package, the G4PH40UD offers ease of integration into various circuit designs, providing efficient heat dissipation and reliable performance.

• High Voltage Rating: Collector-Emitter Voltage (V_CES) of 1200V, suitable for high-voltage applications.
• High Current Capability: Continuous Collector Current of 41A at 25°C, accommodating substantial power requirements.
• Low Saturation Voltage: Typical Collector-Emitter Saturation Voltage (V_CE(on)) of 2.43V at 21A, reducing conduction losses.
• UltraFast Switching Performance: Optimized for high operating frequencies up to 40 kHz in hard switching and over 200 kHz in resonant mode, enhancing efficiency in switching applications.
• Integrated Soft Recovery Diode: Co-packaged with HEXFRED™ ultrafast, ultra-soft-recovery anti-parallel diode, minimizing recovery characteristics and reducing the need for snubbing.
• Standard TO-247AC Package: Provides ease of integration into various circuit designs with efficient heat dissipation.
