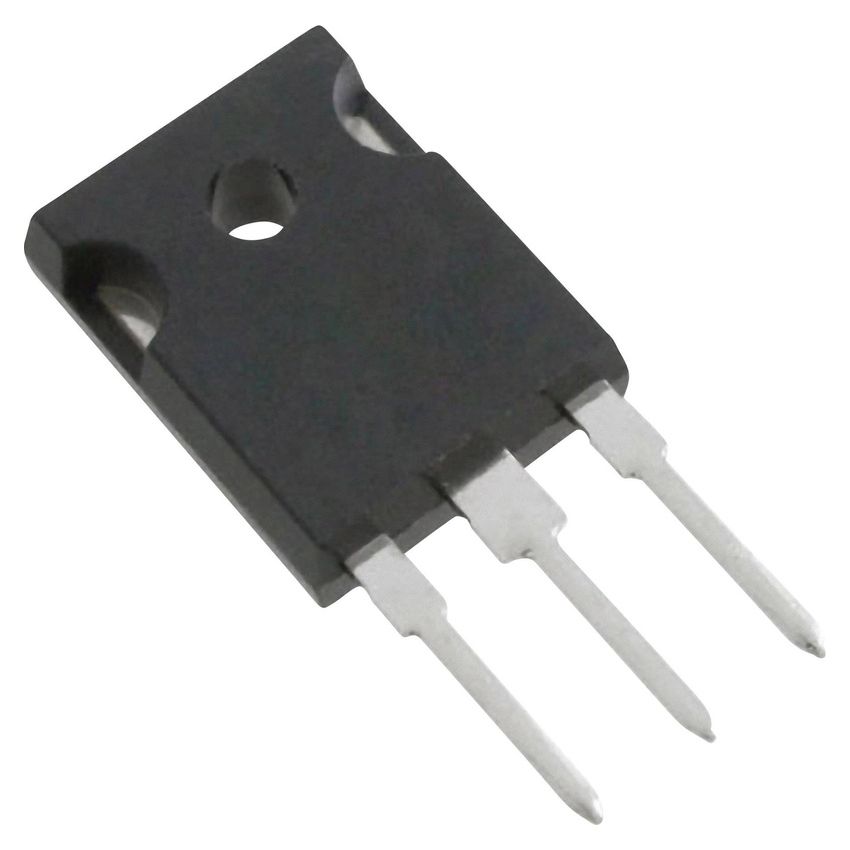

SGW25N120, 1200V 25A NPT IGBT, TO-247

The SGW25N120 is a fast-switching, high-efficiency IGBT developed using Infineon's NPT (Non-Punch-Through) technology. It is optimized for use in motor control, inverters, and high-performance SMPS. With a collector-emitter voltage of 1200V and switching energy as low as 2.9 mJ, it offers high reliability and efficiency in demanding applications. The TO-247AC package supports thermal performance and robust mechanical mounting.

Key Features:

• 1200V Collector-Emitter Voltage: Designed for industrial-grade high-voltage operation.
• 25A Rated Current: Continuous collector current at 100°C junction temperature.
• Low Switching Losses: E_off = 2.9 mJ — 40% lower than previous generation.
• Short Circuit Rugged: Withstands 10 µs short-circuit events.
• NPT Technology: Offers temperature stability and tight parameter distribution.
• Rugged TO-247 Package: Supports parallel operation and high power dissipation.

Additional Specifications:

• Mounting Style: Through Hole
• Collector-Emitter Voltage (VCEO) : 1200V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 46A
• Power Dissipation: 313W
• Operating Temperature Range: -55+150°C
