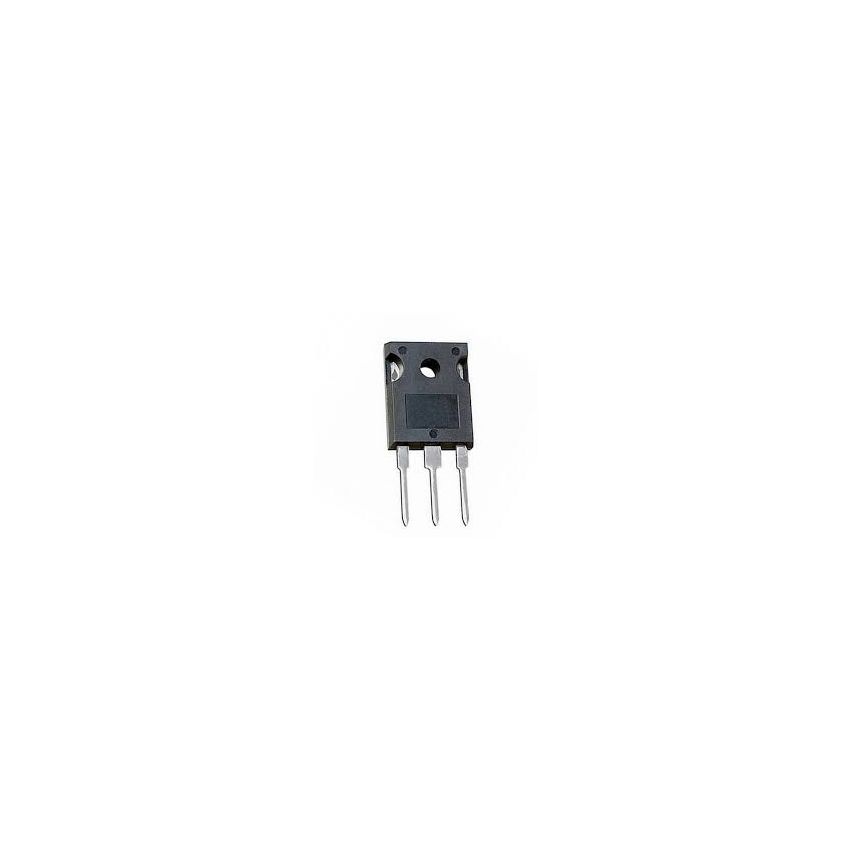

IRGPC40F, N-Channel Insulated Gate Bipolar Transistor, TO-247AC

The IRGPC40F is an N-Channel Insulated Gate Bipolar Transistor (IGBT) designed for medium to high-voltage power switching applications. Combining the high input impedance of a MOSFET with the low on-state conduction loss of a bipolar transistor, this IGBT is ideal for use in motor controls, uninterruptible power supplies (UPS), and various power supply applications.

With a Collector-Emitter Voltage (V_CES) rating of 600V and a Continuous Collector Current of 27A at V_GE = 15V, the IRGPC40F provides robust performance for demanding applications. Its design optimizes switching losses, including "tail" losses, making it suitable for medium operating frequencies ranging from 1 to 10kHz.

Encased in a standard TO-247AC package, the IRGPC40F offers ease of integration into various circuit designs, providing efficient heat dissipation and reliable performance.

• High Voltage Rating: Collector-Emitter Voltage (V_CES) of 600V, suitable for medium to high-voltage applications.
• Moderate Current Capability: Continuous Collector Current of 27A at V_GE = 15V, accommodating various power requirements.
• Low Saturation Voltage: Collector-Emitter Saturation Voltage (V_CE(sat)) optimized for efficient performance, reducing conduction losses.
• Fast Switching Performance: Designed for medium operating frequencies (1 to 10kHz), enhancing efficiency in switching applications.
• Robust Design: Switching-loss rating includes all "tail" losses, ensuring reliable operation under various conditions.
• Standard TO-247AC Package: Provides ease of integration into various circuit designs with efficient heat dissipation.
