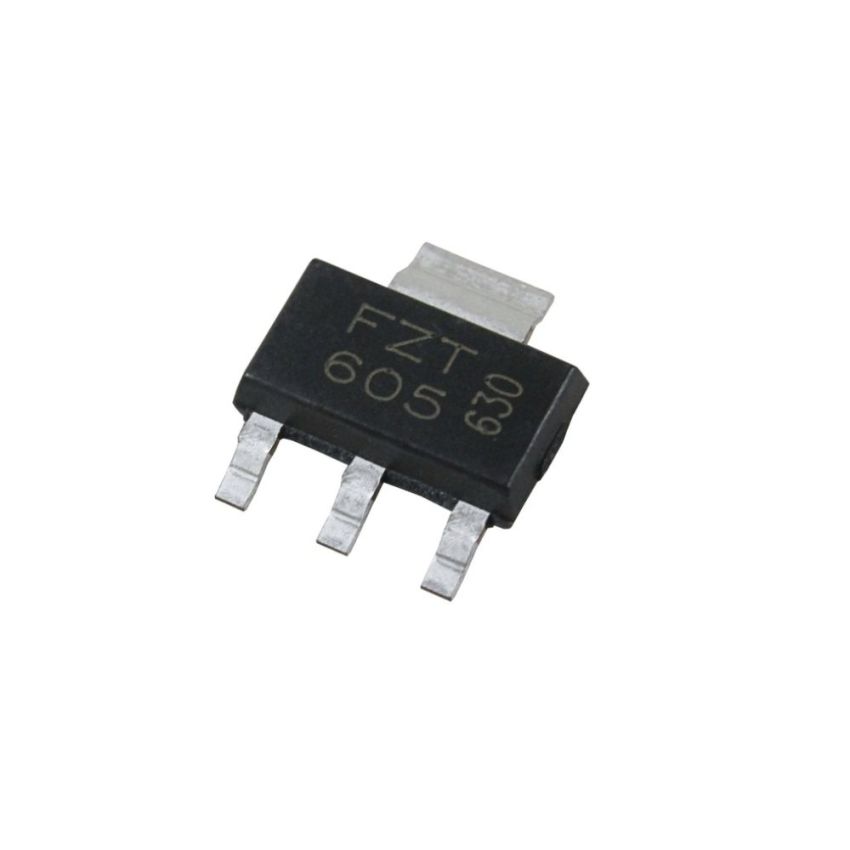

FZT605, NPN Silicon Planar Medium Power Darlington Transistor, SOT-223 Package

The FZT605 is an NPN silicon planar medium power Darlington transistor housed in a SOT-223 package. It is designed for applications requiring high voltage and current handling capabilities, such as lamp, relay, and solenoid driving. The transistor can withstand a collector-emitter voltage of up to 120 V and supports a continuous collector current of 1.5 A. With a high DC current gain exceeding 2000 at 1 A, the FZT605 ensures efficient signal amplification. Its fast switching characteristics make it suitable for rapid switching applications. The device features a lead-free finish, complying with RoHS standards, and is housed in a standard SOT-223 package, facilitating surface-mount assembly and efficient heat dissipation.

• High Collector-Emitter Voltage: Withstands up to 120 V, suitable for various applications.
• High Collector Current: Supports up to 1.5 A, ideal for medium power requirements.
• High DC Current Gain: Offers a gain (h_FE) greater than 2000 at 1 A, ensuring efficient amplification.
• Fast Switching: Designed for rapid switching applications.
• Lead-Free Finish: Complies with RoHS standards, ensuring environmental safety.
• Standard SOT-223 Package: Facilitates surface-mount assembly and efficient heat dissipation.
