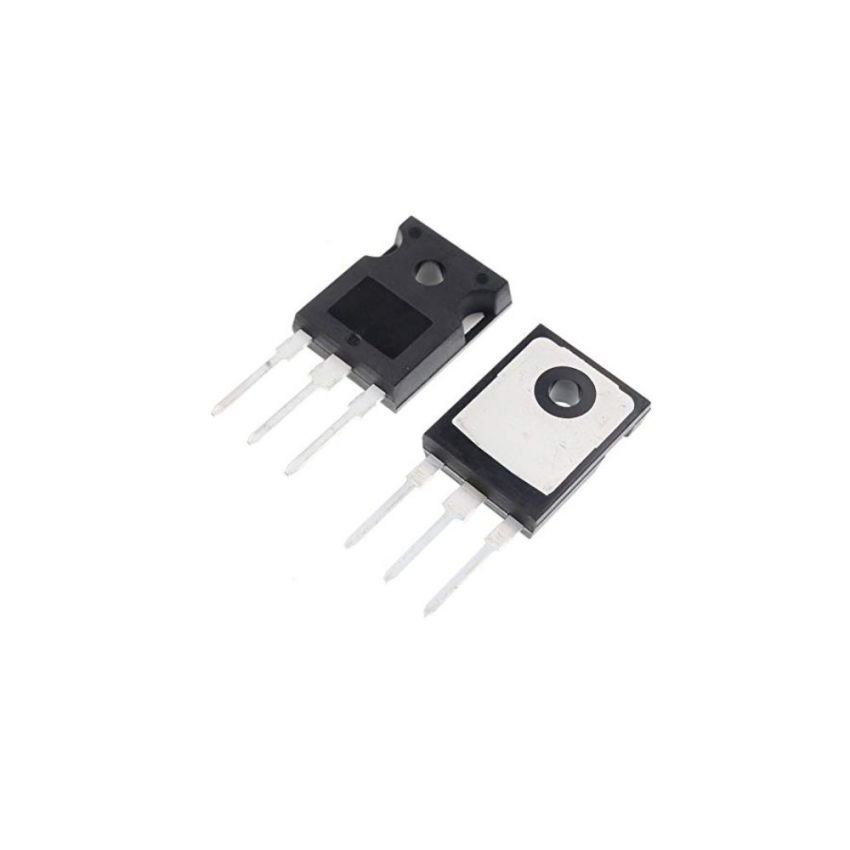

G4PC50K ,Insulated Gate Bipolar Transistor (IGBT), 600V, 50A ,TO-247AC

The G4PC50K is a high-performance, short-circuit-rated Insulated Gate Bipolar Transistor (IGBT) designed for industrial and consumer applications that demand high efficiency and reliability. With a collector-emitter voltage rating of 600V and continuous current capability of 50A, this device is optimized for motor control, high-frequency switching, and power inverters.

This ultra-fast IGBT integrates advanced HEXFRED™ freewheeling diodes to minimize EMI and conduction losses, offering significant advantages in reducing switching losses and improving thermal performance. Its short-circuit withstand capability of 10μs ensures robust operation in fault-prone environments.

Its low gate charge and low switching losses make it a suitable choice for demanding applications such as motor drivers, industrial inverters, and UPS systems.

Key Features:

• High Voltage Handling: 600V collector-emitter voltage for high-power applications.
• Short-Circuit Rated: Capable of withstanding up to 10μs short-circuit conditions.
• High Current Capability: Handles continuous collector current up to 50A at 25°C.
• Ultra-Low Switching Losses: Ensures efficient operation in high-speed circuits.
• HEXFRED™ Diode Integration: Reduces EMI and noise during switching.
• TO-247AC Package: Compact, thermally efficient package for easy integration.
