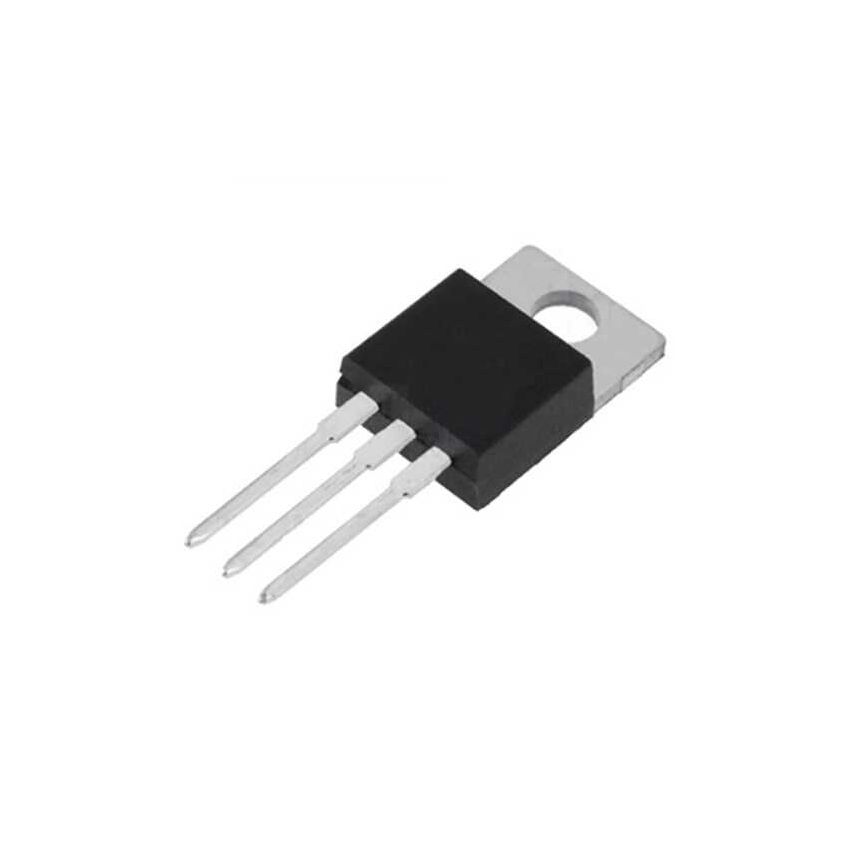

HUF75542P,N-Channel MOSFET,75A,80V,TO-220

The HUF75542P is an N-channel UltraFET MOSFET designed for high-performance power switching applications. With a drain-source voltage rating of 80V and a continuous drain current capability of 75A, it is perfect for use in high-current, high-voltage environments. Its low on-resistance (RDS(on)) of 0.014Ω improves efficiency by minimizing power loss, while the TO-220 package ensures optimal heat dissipation.

This MOSFET is ideal for applications such as motor controls, DC-DC converters, power supply designs, and other high-power circuits where efficiency and thermal management are critical. Its fast switching characteristics make it an excellent choice for high-frequency operations, and it is fully capable of operating under extreme temperature conditions with an operating junction temperature range of -55C to 175C.

• High Current Capability: Supports up to 75A continuous drain current at 25C.
• High Voltage Rating: Drain-source breakdown voltage of 80V, suitable for high-power applications.
• Low On-Resistance: RDS(on) of only 0.014Ω ensures reduced conduction losses and higher efficiency.
• Fast Switching Speed: Ideal for high-efficiency switching applications with fast turn-on and turn-off times.
• Thermally Efficient TO-220 Package: Provides excellent heat dissipation, supporting power-intensive designs.
• High Power Dissipation: Power dissipation up to 230W, allowing usage in high-performance circuits.
