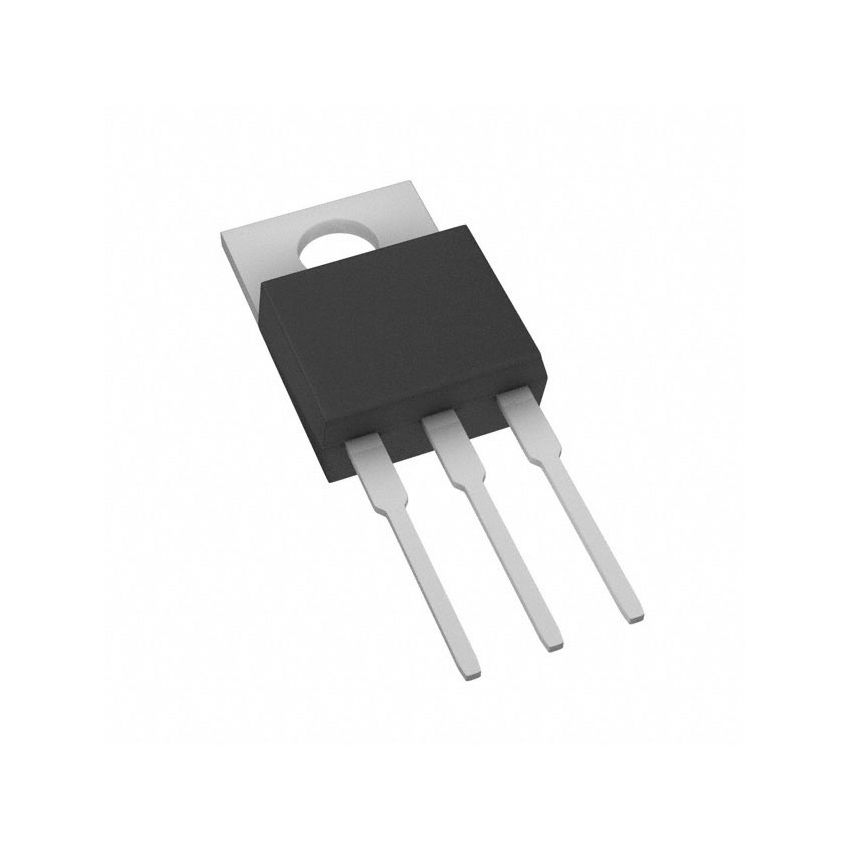

16CTQ100, 100V 16A Schottky Rectifier, TO-220AB

The 16CTQ100 is a high-performance Schottky rectifier designed for high-efficiency power conversion applications. Its robust construction allows it to handle high currents and voltages, making it ideal for use in power supplies, inverters, and freewheeling diode applications. The device's low forward voltage drop and fast switching capabilities ensure reliable performance in demanding environments.​

Key Features:

• High Current Capability: Supports up to 16A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 0.58V at 8A reduces power loss and improves efficiency.​
• Fast Switching Performance: Schottky barrier technology ensures rapid switching, ideal for high-frequency applications.​
• High Surge Current Tolerance: Capable of withstanding non-repetitive surge currents up to 850A, providing robustness against transient conditions.​
• Thermal Stability: Operates reliably over a wide temperature range from -55°C to +175°C, suitable for various environments.​
• Standard TO-220AB Package: Facilitates easy mounting and efficient heat dissipation.​

Additional Specifications:

• Type: Schottky Rectifier
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 100V
• Forward Average Current (If): 16A
• Forward Voltage (Vf): 0.58V At 8A
• Maximum Surge Current: 850A
• Reverse Current (Ir): 0.55Ma At 25°C,7Ma At 125°C
• Dimensions: TO-220AB Package
