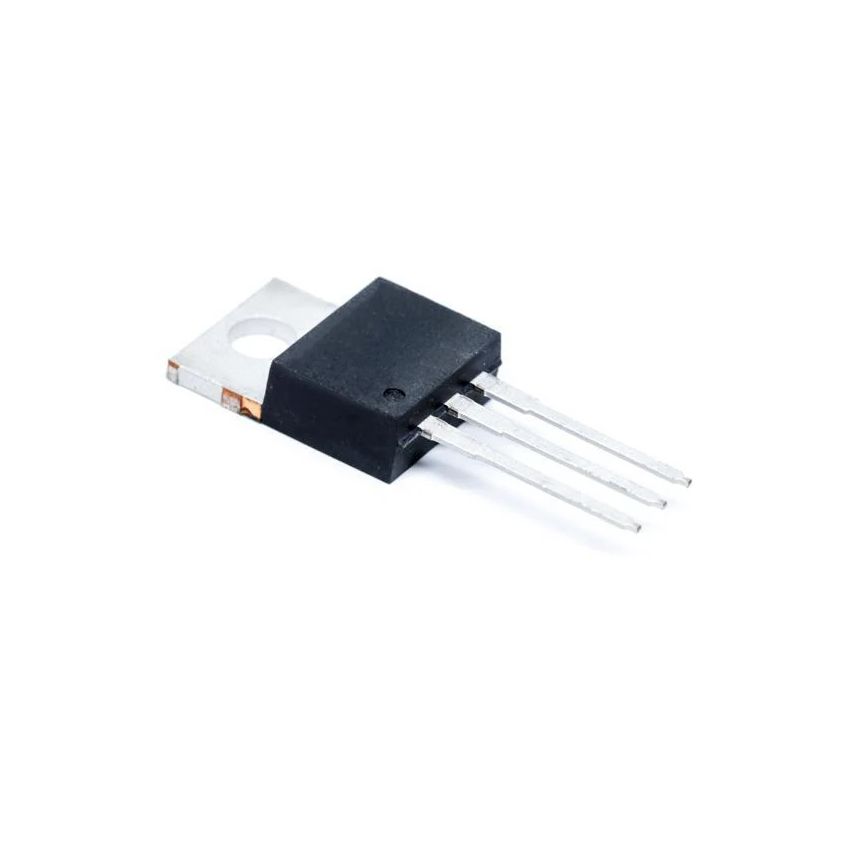

LM338TP, 1.2–32V 5A Adjustable Voltage Regulator, TO-220-3

The LM338TP is a versatile adjustable voltage regulator capable of supplying up to 5A of output current over a 1.2V to 32V range. Its robust design includes thermal overload protection and short-circuit protection, ensuring reliable operation in various applications. The device's low dropout voltage and standard TO-220 package make it ideal for use in power supplies, battery chargers, and other electronic systems requiring a stable adjustable voltage source.​

Key Features:

• Adjustable Output Voltage: Provides an output range from 1.2V to 32V, suitable for various applications.​
• High Output Current Capability: Delivers up to 5A of continuous output current with proper heat sinking.​
• Thermal Overload Protection: Incorporates thermal shutdown to prevent overheating.​
• Short-Circuit Protection: Features current limiting to safeguard against short-circuit conditions.​
• Low Dropout Voltage: Ensures efficient operation with a typical dropout voltage of 2.7V.​
• Standard TO-220 Package: Facilitates easy mounting and efficient heat dissipation.​

Additional Specifications:

• Package Type: TO-220-3​
• Supply Voltage: 4.2-40V
• Current: 1.2-32V
• Type: Adjustable Voltage Regulator
