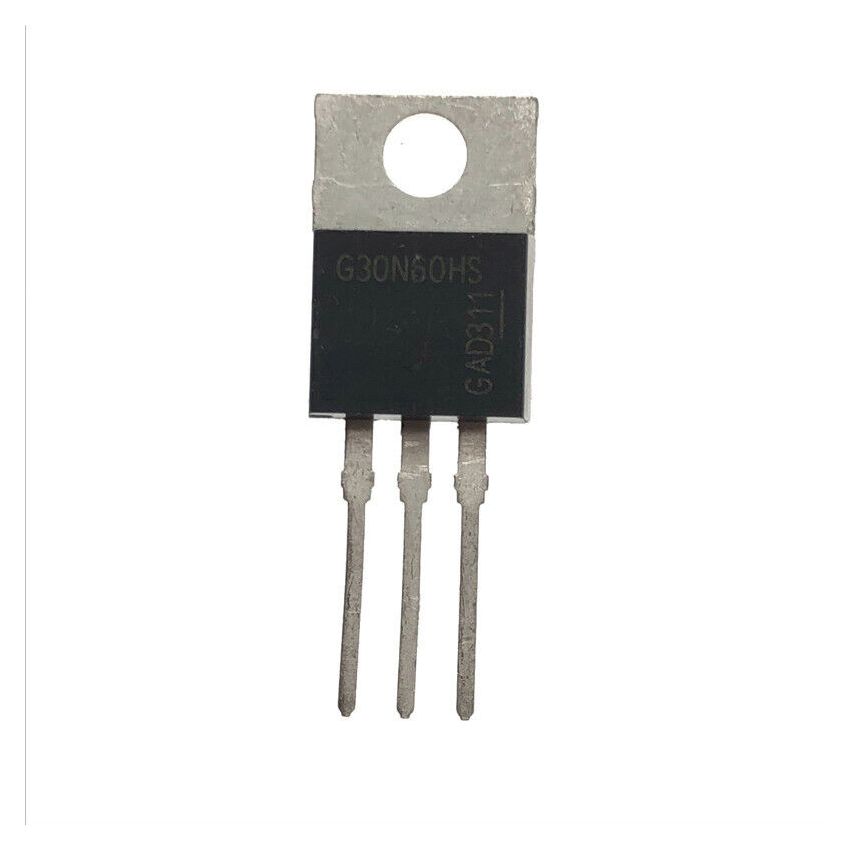

SGP30N60HS,N-Channel IGBT,600V,30A,TO-220-3

The SGP30N60HS is a high-speed N-channel Insulated Gate Bipolar Transistor (IGBT) designed for high-voltage, high-frequency power switching applications such as welding equipment, UPS systems, and power factor correction circuits. With a maximum collector-emitter voltage of 600V and a continuous collector current of 30A, it delivers robust performance in demanding power environments.

The device features a low collector-emitter saturation voltage (V_CE(sat)) of 2.8V, reducing power dissipation during operation. Its short-circuit capability and fast switching characteristics enhance its reliability and efficiency in industrial and commercial applications.

The TO-220-3 package provides effective thermal management, ensuring stable operation under heavy load conditions. The SGP30N60HS is a reliable choice for motor drives, inverters, and other industrial power systems requiring efficient energy conversion and switching performance.

• High Voltage and Current Ratings: Supports 600V collector-emitter voltage (V_CE) and 30A continuous collector current, making it ideal for power switching applications.
• Low Saturation Voltage: Features a V_CE(sat) of 2.8V, minimizing conduction losses for increased efficiency.
• High-Speed Switching: Provides fast turn-on and turn-off times for high-frequency operations in industrial applications.
• Short-Circuit Capability: Designed for enhanced reliability with short-circuit protection features.
• Robust Thermal Performance: Optimized for efficient heat dissipation in the TO-220-3 package.
• Integrated Freewheeling Diode: Includes a fast-recovery diode for improved switching performance.
