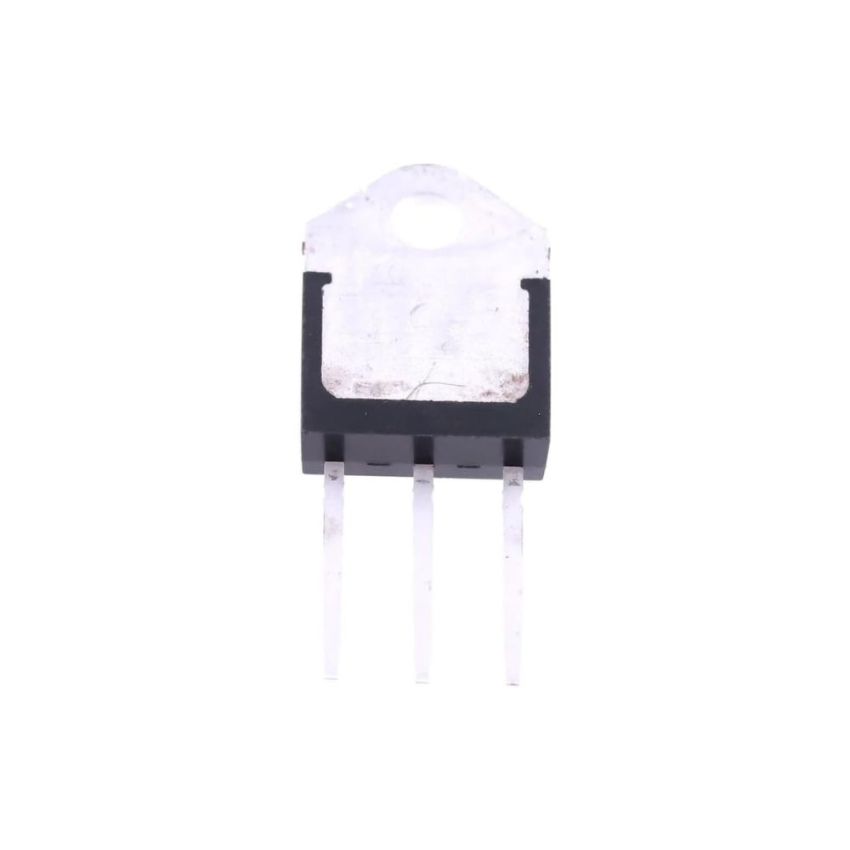

BTA41-700B,TRIAC,TO-3P, 800V,40A

The BTA41-700B is a high-performance TRIAC (Triode for Alternating Current) designed to deliver reliable and efficient switching in AC applications. With a maximum repetitive off-state voltage (VDRM) of 800V and a continuous on-state current of 40A, this TRIAC is perfect for use in motor controls, lighting dimmers, phase control circuits, and other AC switching applications. The BTA41-700B offers a robust design with excellent thermal performance, housed in a TO-3P package that ensures effective heat dissipation and easy mounting.

Equipped with a low gate trigger current of 50mA, the BTA41-700B can be easily controlled, making it a reliable solution for designs requiring precise AC switching. Its high surge capability, with the ability to handle non-repetitive peak currents up to 400A, ensures that it can withstand sudden changes in load without compromising performance. Designed for a wide operating temperature range of -40°C to +125°C, this TRIAC is built for durability and consistent operation in demanding conditions.

• High Voltage Capability: Rated for a maximum repetitive off-state voltage (VDRM) of 800V, suitable for AC control applications.
• Robust Current Handling: Supports a continuous on-state current of 40A, making it ideal for motor controls, lighting, and phase control.
• Efficient Triggering: Low gate trigger current (Igt) of 50mA ensures easy control and reliable performance.
• Durable TO-3P Package: Features a robust package design for efficient heat dissipation and secure mounting.
• High Surge Capacity: Capable of handling non-repetitive surge peak on-state currents (ITSM) up to 400A, providing reliable performance under sudden load conditions.
• Wide Operating Temperature Range: Operates efficiently across a temperature range of -40°C to +125°C, suitable for various environments.
