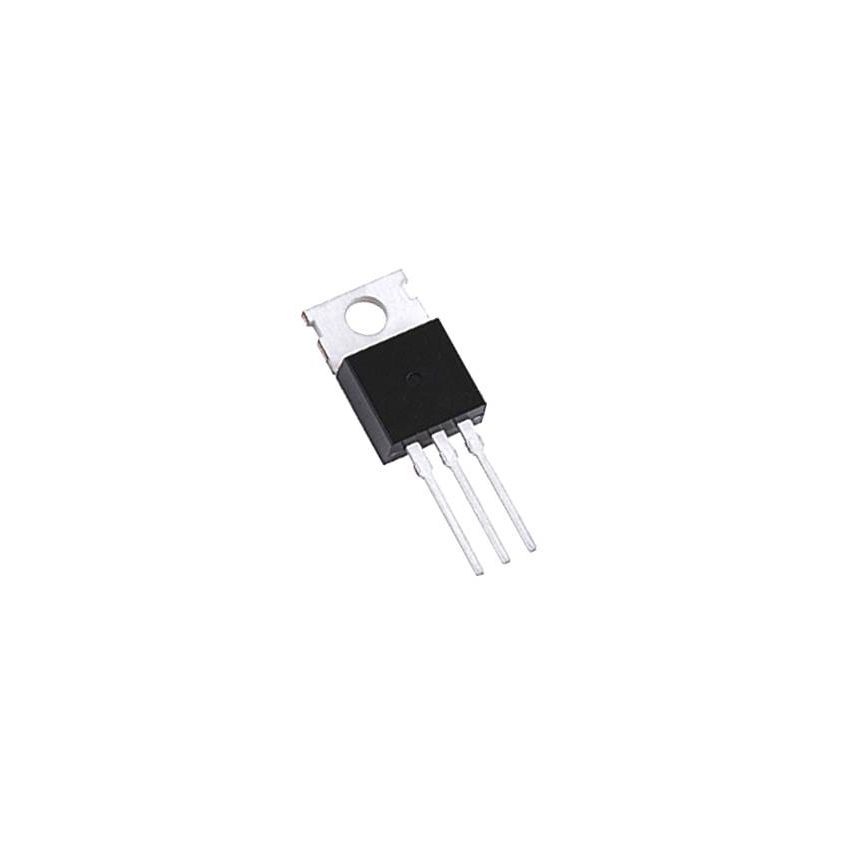

MJE13005 ,NPN Power Transistor - 700V, 4A, TO-220AB Package

The MJE13005 is a high-voltage, high-power NPN transistor specifically designed for fast switching applications in electronic circuits. Its ability to handle high voltages (up to 700V) and current ratings makes it a preferred choice in power converters, switching regulators, inverters, and lighting applications such as fluorescent light ballasts. This transistor utilizes a triple diffused technology that ensures a robust structure with excellent electrical characteristics, allowing it to achieve high speed in DC-DC converters and switching regulators.

The TO-220AB package ensures efficient heat dissipation, enabling a maximum power dissipation of 75W. The MJE13005 exhibits low collector-emitter saturation voltage, improving overall energy efficiency in high-frequency circuits. Moreover, the transistor has been designed for harsh operational environments, maintaining stable performance across a wide temperature range. Its fast rise and fall times allow for high-efficiency switching operations, making it a vital component in both industrial and consumer power applications.

With its high-voltage capability and versatile functionality, the MJE13005 is well-suited for use in high-voltage switching power supplies, motor control circuits, high-speed DC-DC converters, and similar applications demanding reliable and efficient performance under high-voltage conditions.

Key Features :

• High Voltage Handling: Maximum Collector-Base Voltage (VCBO) of 700V and Collector-Emitter Voltage (VCEO) of 400V.
• Maximum DC Collector Current: Can handle up to 4A of current, making it suitable for heavy-duty applications.
• Power Dissipation: With a maximum power dissipation of 75W, the MJE13005 offers excellent thermal performance under load.
• Triple Diffused Technology: Offers improved performance and reliability in high-speed and high-power applications.
• Fast Switching Speed: Exhibits low switching times (Turn-on Time of 0.8µs and Fall Time of 0.9µs), ideal for high-speed switching circuits.
• Low Saturation Voltage: Low Collector-Emitter saturation voltage for enhanced energy efficiency.
