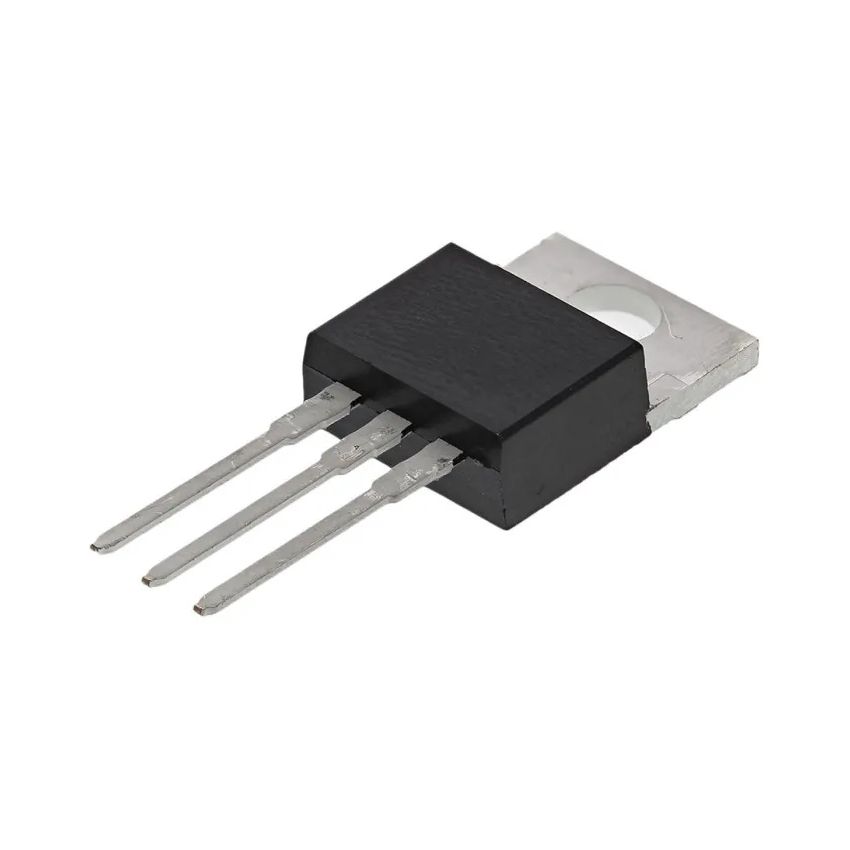

MBR20100CT, 100V 20A Dual Schottky Rectifier, TO-220-3

The MBR20100CT is a dual Schottky rectifier designed for high-efficiency power conversion applications. With its low forward voltage drop and fast switching capabilities, it is ideal for use in power supplies, inverters, and freewheeling diode applications. The device's high surge current capability and thermal stability ensure reliable performance in demanding environments.​

Key Features:

• High Current Capability: Each diode leg supports 10A, totaling 20A for the device, suitable for high-current applications.​
• Low Forward Voltage Drop: Typical forward voltage of 0.85V at 10A reduces power loss and improves efficiency.​
• Fast Switching Performance: Schottky barrier technology ensures rapid switching, ideal for high-frequency applications.​
• High Surge Current Handling: Capable of withstanding surge currents up to 150A, providing robustness against transient conditions.​
• Thermal Stability: Operates reliably over a wide temperature range from -65°C to +175°C, suitable for various environments.​
• Standard TO-220 Package: Facilitates easy mounting and efficient heat dissipation.​

Additional Specifications:

• Type: TO-220-3​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 100V
• Forward Average Current (If): 20A
• Forward Voltage (Vf): 150A
• Maximum Surge Current: 0.85V At 10A
• Reverse Current (Ir): 1Ma At 100V
• Dimensions: 14.94x10.16x4.57Mm
